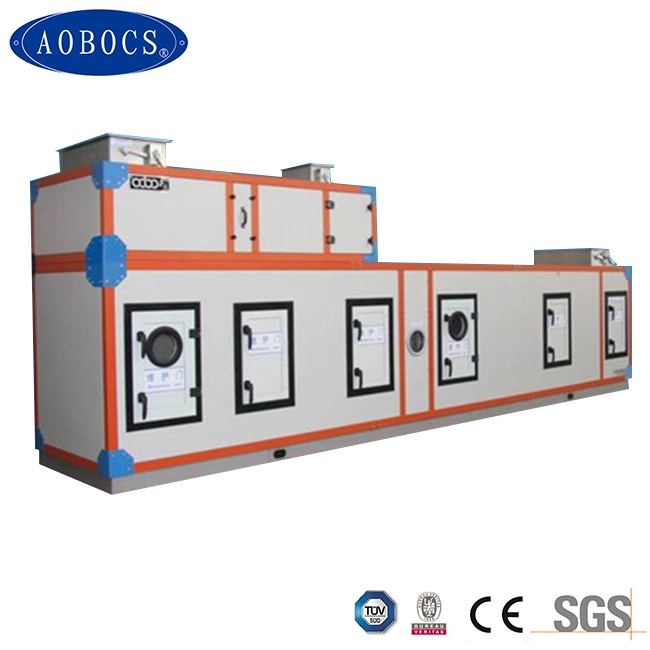

Humidity Control Machine Industrial Dehumidifier Without Compressor

humidity control machine industrial dehumidifier without compressorTechnical ParameterItem capacity air volumeReactmethod*React method(electric)rotor speed Dimension WeightKg/hm3/hKWKWN(rph)(L×W×H)KgZHS-

humidity control machine industrial dehumidifier without compressor

Technical Parameter

Item	capacity	air volume	React method*	React method (electric)	rotor speed	Dimension	Weight
Item	Kg/h	m3/h	KW	KW	N(rph)	(L×W×H)	Kg
ZHS-250	2.5~4	300~600	-	5.6	13~25	1200×650×780	80
ZHS-350	4~8	600~1200	-	11~18	13~25	1200×700×800	120
ZHS-450	8~12	1200~2400	2.3~3.5	15~23	13~25	1300×750×850	180
ZHS-550	12~20	2400~4800	3.5~5.5	22.5~32	10~23	1400×750×900	200
ZHS-770	20~32	4800~7000	2.5	43~53	10~23	1600×1000×1100	350
ZHS-950	32~60	6000~12000	3.2~5.7	68~90	10~23	1600×1200×1300	380
ZHS-1200	60~95	10000~20000	5.8~7.5	116~185	15~28	1600×1400×1600	420
ZHS-1500	95~150	15000~25000	8~11.5	-	15~28	1800×1700×2000	550
ZHS-1900	150~230	20000~35000	12~15	-	15~28	2000×2200×2500	700
ZHS-2400	230~310	30000~45000	15~20	-	15~28	2200×2800×3300	1200
ZHS-3000	310~500	45000~70000	22~28	-	15~28	2500×3500×5200	1800

Note: air cleaning equipment industrial food dehumidifier

1. rotor speed surface: design to 2~5.5/S

2. The processing air of rated dehumidifying capacity according to the test value of temperature 27°C, relative humidity 60%, recovery temperature 120~140 °C.

3. The recovery method* can select and use steam, fuel oil, natural gas, liquefied gas, and city gas
