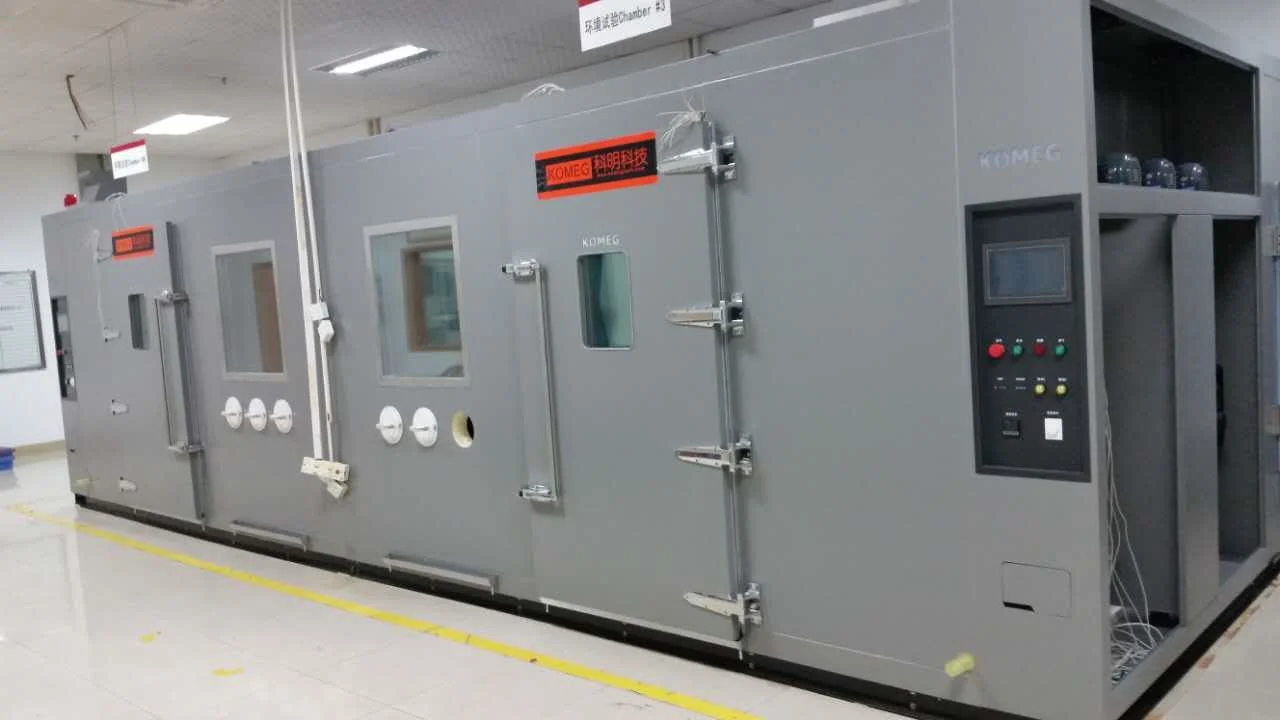

A KOMEG Walk-In Chamber serves as a test site for large components, assemblies, and finished products. KOMEG manufactures both Panel Walk-In Chambers and Solid Walk-In Chambers and can be configured as a temperature chamber or a temperature humidity chamber.
A Panel Walk-In Chamber is made from lightweight insulated panels for fast and easy installation. Usually for electronics temperature aging, like recharger, PCBA, Battery, LCD, scanners, monitors, LED, biological equipment, etc. Outside banding helps prevent leaking and keeps moisture out of the Walk-In Chamber and workspace temperatures steady.
Solid Walk-In Chambers are custom built to accommodate almost any size. They feature welded walls creating an environmental room for applications requiring controlled temperature and humidity testing exceeding 85°C. Typically, for ease of installation, a Solid Walk-In Chamber works best in new construction buildings, areas with extremely large doors, or rooms where outside walls can be easily removed.
| Model | KMHW-9 | |
| Volume(m³) | 9CBM | |
| Interior Dimensions | W2100 x H2100 x D2050mm | |
| Exterior Dimensions | W3250 x H2350 x D2250mm | |
| Safety Devices(standard) | No fuse breaker, over pressure, over heat and over current protection for compressor, over temperature protection, over load protection for blower, dry heat protection | |
| Standard accessories | Sight window*1, cable port ( portΦ50mm ) *1, chamber lamp*1, status indicator | |
| Control System | Balanced Temperature & Humidity Control System | |
| Refrigeration system | Water Cooled | |
| Semi-hermetic compressor, single stage or cascade refrigeration system, | ||
| CFC free refrigerant ( HFC-507 and HFC-23 ) | ||
| Controller | Panel | 7-inch LCD Touch panel, Chinese or English display selectable |
| Operation model | Program or fix point running | |
| Memory capacity | 120 programs,1200steps, all repeat 999 cycles,part repeat 99 cycles | |
| Accuracy | Temp.:0.1% of F.S ± 1 digit Humidity:0.1% of F.S ± 1 digit | |
| Input | Temp.: pt-100, Humidity: pt-100 or ~5V DCV | |
| Comm.port | RS-232 or RS-485 ( Softawre is option) | |
| Temp. range | Maximum: 80 ºC,120 ºC; Minimum: -60 ºC, -50 ºC, -40 ºC, -30 ºC, -20 ºC, -10 ºC, 0 ºC | |
| Humidity Range | 10%, 20%, 30% ~ 95% | |
| Temp. constancy | ±0.5 ºC | |
| Humidity constancy | ±2.5%R.H | |
| Temp. uniformity | ±2.0 ºC | |
| Humidity uniformity | ±5.0%R.H | |
| Ambient Temp. | +5 ºC~+35 ºC | |
| Wiring method | AC 380 ± 10% 50Hz ,3 phase 4 wires + Ground Wires | |
| Heat up time | +20 ºC~+80 ºC, Within 60 min | |
| Pull down time | +20 ºC ~ -55 º, -40 ºC, -20 ºC, -10 ºC, Within 120 or 90 or 60 min | |
| Interior material | Stainless Steel Plate(SUS 304) | |
| Exterior material | Baked Painting Steel Or Stainless steel ( SUS304) | |
| Insulation material | Rigid polyurethane foam | |
| Door size (mm) | Single wing: W800 x H1800; Double wing: W1600 x H1800; | |
| Note: 1. We reserve the right to change specifications without prior notice 2.Customized sizes and configurations available | ||
