Climatic Simulating Environmental Temperature Humidity Fast Rate Laboratory test Chamber
Applicable range
Climatic Simulating Environmental Temperature Humidity Fast Rate Laboratory test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Features
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole series (R232,R404).
6. Imported LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.

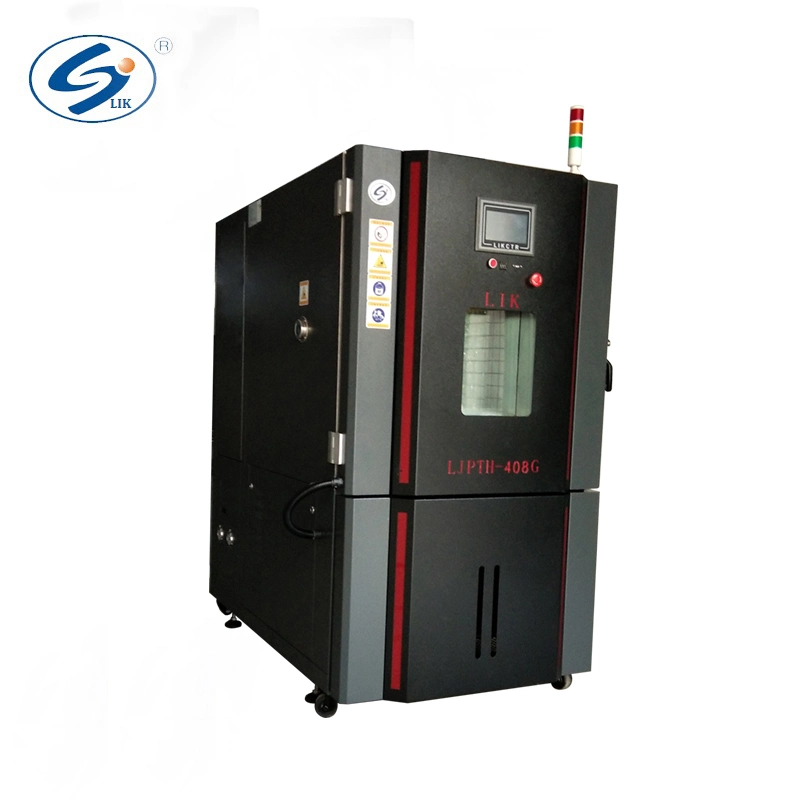

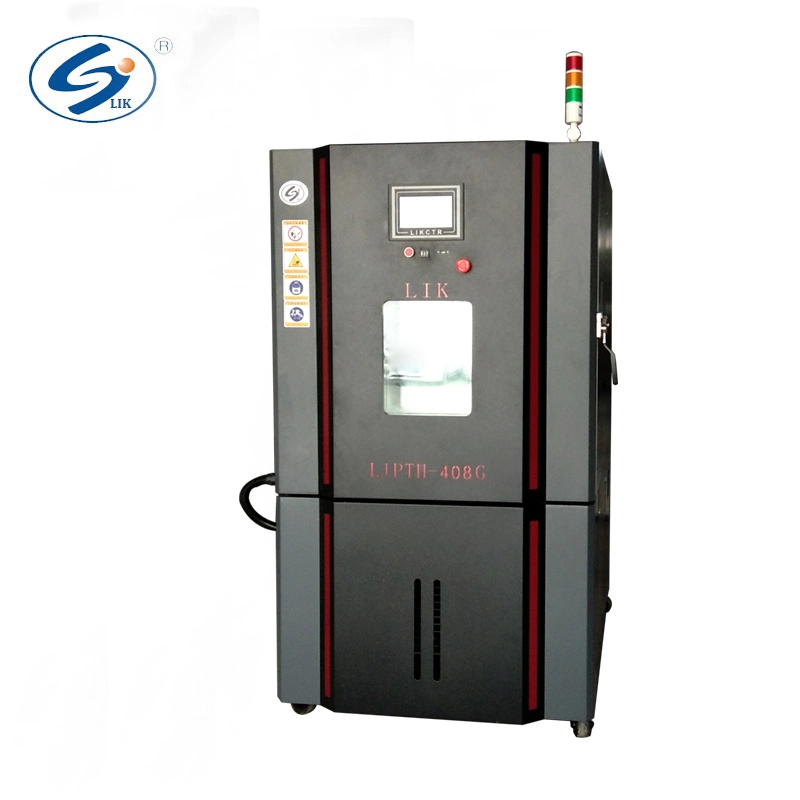

Products image
Specifications and technical parameters
Corresponding test standards:
1.GB/T2423.1-2001 Test A: low temperature test method
2.GB/T2423.2-2001 Test A high temperature test method
3.GB/T11158-2008 technical condition of high temperature test chamber
4.GB/T10589-2008 technical condition of low temperature test chamber
5.GB/T 2423.22-2008 test Nb:temperature variation test
6.GB/T 2423.4-2008 test Db:alternating temperature humidity test
7.GB/T 2423.3-2008 Constant temperature humidity test
8.GJB150.3-2009 high temperature test
9.GJB150.4-2009 low temperature test
10.GJB150.9 humidity test
11.GJB 150.9A-2009 test standards for temperature humidity test GB/T5170.2-2008
temperature test device.
12.GB/T5170.5-2008 temperature humidity test devices,
Meet the requirements of 8.1 alternating temperature humidity cyclic test in Lithium-ion power battery packs and systems designed electromobile Part2: test specification for high-energy application.
Our Factory
Short introduction about LIK factory:
We are a long history testing equipment manufacturer, in the past 10 years, we devoted to simulation environmental testing equipment and Mechannical vibration and shock testing machine and battery test equipment. In the research and development of the non-standard dynamic environment chamber, LIK is in the leading position in the industry and we have got more than 30pcs patents.
LIK main test equipments:
Environmental test chambers, temperature (humidity) chamber,Thermal shock chamber, High low temperature test chamber, Salt spray test chamber, PCT /Hast chamber (Highly accelerated stress test chamber),ESS chamber, Walk in constant temperature and humidity test chamber,Vacuum oven, Drying Cabinet, electrodynamic vibration shaker,mechanical shock tester,environmental combined vibration chamber, Powe battery crush and puncture test machine, Battery shock impact test machine, Battery Squeeze test machine, battery short circuit tester, Battery burning jet test equiopment, Battery needling test machine, etc
Our Service
If you face any problems in future during testing process we promise we will give you a reply within 48 hours and solution provide within 3 working days. We can offer operation video and English operation muanual. We can provide video-conference. We accept on-site service If customers require.
1. Pre-service
24 Hours online service for your consult.
Help choose right model, and a series of service, person, advise. Main web site: http://liktest.en.made-in-china.com
1) More than 10 years manufacturer experience in test equipments and with strong research and development team.
2) Acceptable customization for all kinds of specical specification products.
3) We value the inquiry sent to us timely, ensure quick and competitive offer.
4) We put your order into our tight production schedule,ensure your punctual delivery time.
5) We are a sales team, with more than 10 years experience, more professional and reliable
6) Our professional team could provide the best suggestion as long as you tell us what kind of test you need to do and the required specification.
7) Welcome to view our factory at any moment .
2. After sale service
1) We deal with your complains within 24 hours and solution provide within 3 working days.
2) Trainning how to instal the machine, training how to use the machine. We would offer operation video and English operation muanual. We can provide video-con.
3) 1 year warranty service and all life maintenancee; our engineers could go to your place for better service necessarily.
4) All staffs in our company with philosophy of " integrity, dedication, truth-seeking, enterprise", would be dedicated to provide high quality service and products for you.
3. Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.
5. Good Packaging:
Good Packaging: All goods are covered with film and air bubble film before put them into the strong wooden case.
FAQ
Why choose us?
Q1 : Can you customize the product?
A: Yes, we can customize any products according to requirements.Hot selling lab electronic
temperature humidity cabinet/Environmental climate test chamber also can be customized.
Q2 : How to choose the most suitable products?
A: Our professional team will give you the best suggestion,just be patiently to tell us the information
about the parameters your required.
Q3 : Can you arrange installations and commissioning in our lab?
A: Firstly, for standard chamber we had 3-5 days commissioning before shipping ,
you just need link power in your lab, then can start to operate.
Secondly, we had detailed operation manual with chamber , any problems you can
find and solve in it.
Thirdly, some of customized chambers we should to install and teach your team to operate .
How to Contact Us?
Please Send your inquiry Details in the below Or send to my mail below directly. We promise reply your inquiry on time.
Applicable range
Climatic Simulating Environmental Temperature Humidity Fast Rate Laboratory test Chamber is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Features
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole series (R232,R404).
6. Imported LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
Products image
Specifications and technical parameters
| specifications and technical parameters | |||||
| Model | LJPTH-100 | LJPTH-225 | LJPTH-408 | LJ(PTH-1000 | LJPTH-1200 |
| Inner size: W*H*D(cm) | 50*50*40 | 50*75*60 | 80*85*60 | 100*100*100 | 150*100*80 |
| External size: W*H*D(cm) | 70*161*116 | 70*186*136 | 105*195*165 | 120*211*176 | 170*168*185 |
| Temperature range | (0~+150ºC; -20~+150ºC; -40~+150ºC; -60~+150ºC; -70~+150ºC) | ||||
| Humidity range | 20%~98% RH; Dry wet bulb sensor . (10%~98%R.H);(5%~98%R. special optional condition) | ||||
| Range of Fast Temperature Change | Temperature Range: -70~+150ºC; Range of Fast Temperature Change: -45~+85ºC; Max. temperature rising / falling speed is 15ºC/min when the whole process with linear control | ||||
| Analytic Accuracy / Distribution Uniformity of Temperature and Humidity | 0.1ºC; 0.1% R.H/±2.0ºC; ±2.0% R.H. | ||||
| Control Accuracy of Temperature and Humidity | ±0.5ºC; ±2.5% R.H. | ||||
| Temperature Rising / Falling Speed Rate | 5~15ºC/min (linear control) 5~15ºC/min (non-linear control) | ||||
| Inner and outer materials | Inner: Mirro face SUS#304 Stainless steel ; Outer: Mirro face cold rolled steel with power coating. | ||||
| Insulation materials | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | ||||
| Cooling system | Air cooling | ||||
| Compressor | Original imported compressor | ||||
| Resolution ratio | temperature: 0.01ºC ; humidity: 0.1%RH; time: 1s. | ||||
| Transducer (sensor) | Temperature: armored platinum resistance PT100 German JUMO ; Humidity: Finland VAISALA | ||||
| Safety device | Power off protection, overtemperature protection, The alarm function and overtemperature shutdown protection according to the upper and lower limit temperature, Self-checking when power on, three levels of password protecting of setting parameters. | ||||
| Standard Parts | Watching window , sample holder(2 sets) , One wire hole , one illuminating lamp, one power line, USB interface. | ||||
| Controller | Import PLC module(OMRONI LK8600)+ 7 inches color touch screen | ||||
| Import OMRON PID modules, 0.1% control precision. | |||||
| 100 operatiing Processes, each process with 50 steps. | |||||
| paperless recording function, the maximum time for recording date can amount to 1200 days. | |||||
| Electronic signature function, limiting operation password protection function. | |||||
| PID cold-end output function, control software intergrates the efficiency of machine, save 20% power. | |||||
| scalable: uniformity of the acquisition and display devices of multi-channel temperature and humidity | |||||
| Power | AC 380V 50Hz / AC 240V 60Hz | ||||
| Customized service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. | ||||
Corresponding test standards:
1.GB/T2423.1-2001 Test A: low temperature test method
2.GB/T2423.2-2001 Test A high temperature test method
3.GB/T11158-2008 technical condition of high temperature test chamber
4.GB/T10589-2008 technical condition of low temperature test chamber
5.GB/T 2423.22-2008 test Nb:temperature variation test
6.GB/T 2423.4-2008 test Db:alternating temperature humidity test
7.GB/T 2423.3-2008 Constant temperature humidity test
8.GJB150.3-2009 high temperature test
9.GJB150.4-2009 low temperature test
10.GJB150.9 humidity test
11.GJB 150.9A-2009 test standards for temperature humidity test GB/T5170.2-2008
temperature test device.
12.GB/T5170.5-2008 temperature humidity test devices,
Meet the requirements of 8.1 alternating temperature humidity cyclic test in Lithium-ion power battery packs and systems designed electromobile Part2: test specification for high-energy application.
