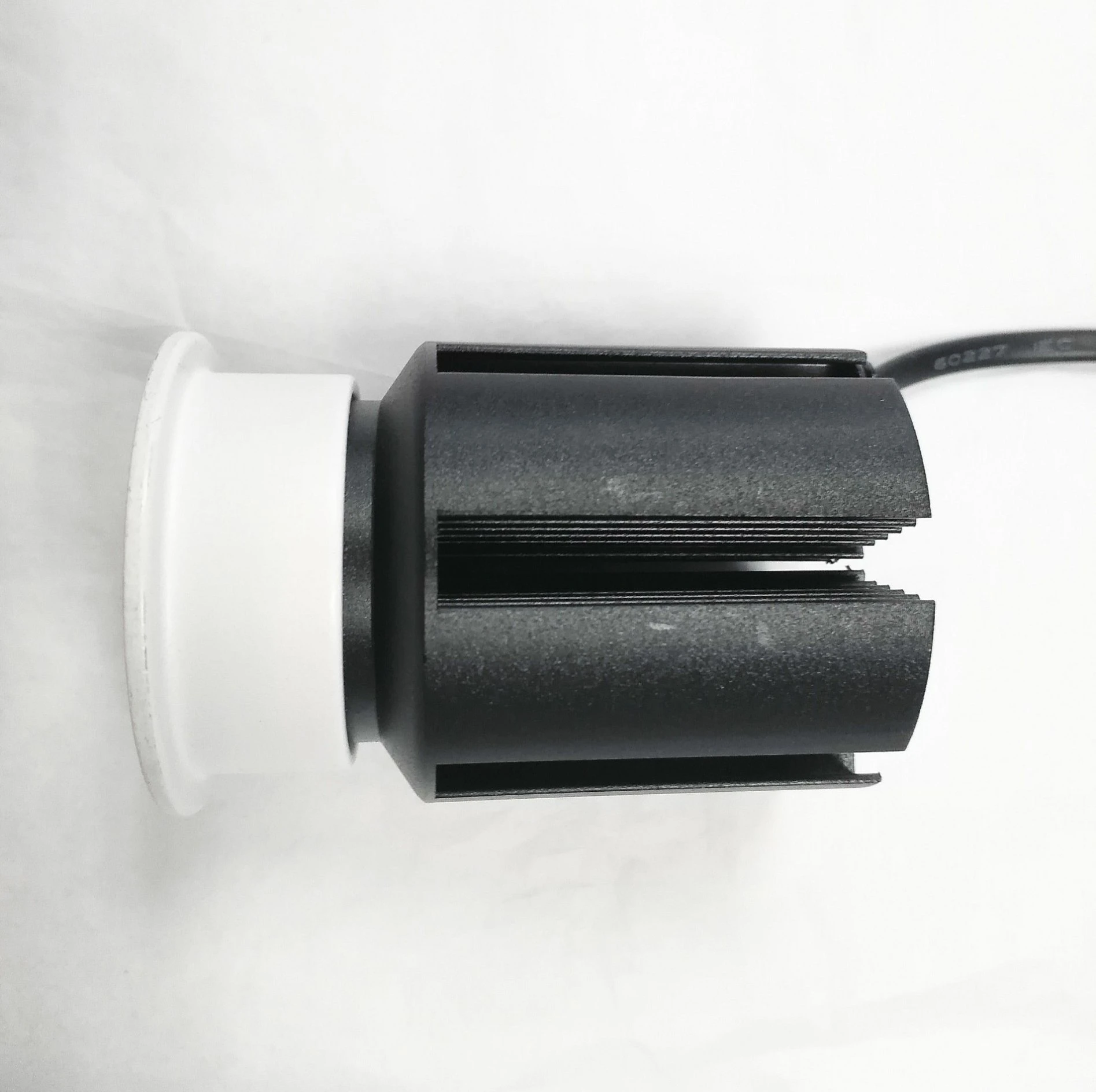

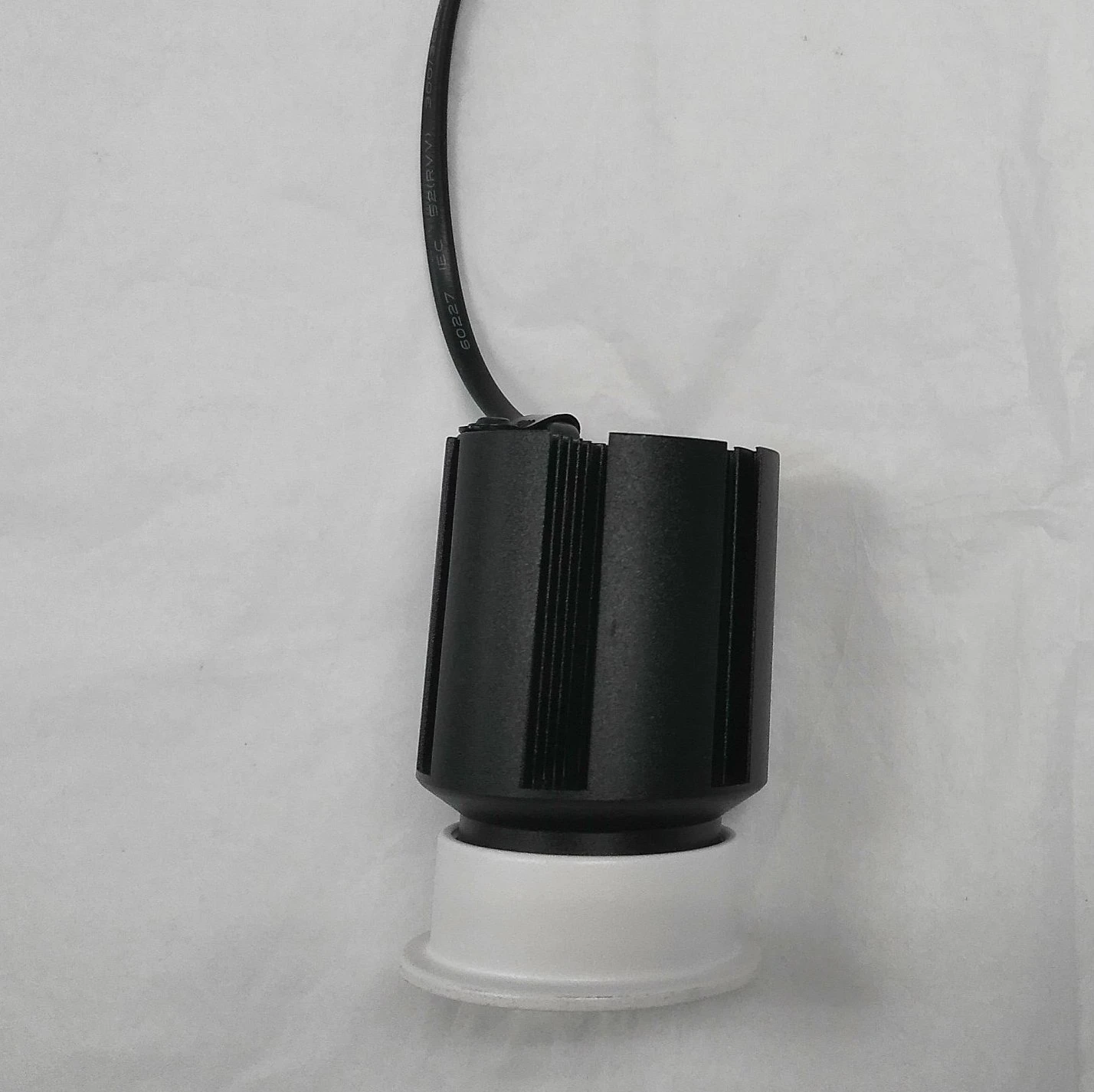

| Data Sheet for LED Downlight Module (Reflector Type) | ||||
| Product Name: | 8W LED Downlight Module | 12W LED Downlight Module | 18W LED Downlight Module | 20W LED Downlight Module |
| Part Number: | D09-8W-R | D09-12W-R | D09-18W-R | D09-20W-R |
| Input Voltage: | AC 220~240V 50/60Hz | |||
| Power Consumption: | 8W | 12W | 18W | 20W |
| Light Source: | Cree COB LED | |||
| Driver: | Lifud | |||
| Luminous Flux: | 700lm | 1100lm | 1600lm | 1800lm |
| Color Temperature: | 2700K(Warm) 3000K (Warm) 4000K (Neutral) 5000K (Cool) | |||
| CRI: | 80Ra or 90Ra (Optional) | |||
| Beam Angle: | 15, 24, 36 Degrees (Optional) | |||
| UGR: | 17 | |||
| IP Grade: | IP40 | |||
| Construction: | Aluminum; Aluminum Reflector | |||
| Physical Dimensions: | Φ50*60mm | Φ50*75mm | Φ50*95mm | Φ50*100mm |
