Temperature and Humidity test Chamber / Climate Test Chamber

Temperature and Humidity test chamber / Climate chamber is a precise and durable conditioning system that able to offer quick and constant conditions from 5% to 98% R.H. +/- 0.5% and-70°C to 150°C +/-0.5°C, is widely used for the resistance test to heat, cold, dry, and humidity etc, and used for the conditioning of many kinds of samples prior to testing

It is designed for testing the capability of heat-endurance, cold-endurance, dryness-endurance, and humidity-endurance, suitable for quality control of the industries of electron, electrical equipment, vehicle, metal, foodstuffs, chemistry, building materials, luggage, adhesion tape, printing, packaging, etc.

Temperature and Humidity Test Chamber is with different size and temperature range customization
1.LCD touch screen
2.Inner material:SUS#304
3.Tato controller, with Independent R &D software (7 languages)
4.Teme. Range: -70~150/180C adjustable

Accessories:
Inner door with operation hole (optional)
50mm or 100mm Entrance hole for test wire, Dia. 50mm or 100mm
Sample Shelves, two layers or more
R232 or R485 communication Interface for remote control

OEM customization available
High cost-effective
CE, RoHS, FCC Marked Equipment,
ISO 9001 certificated
SGS tested SUS#304 stainless steel

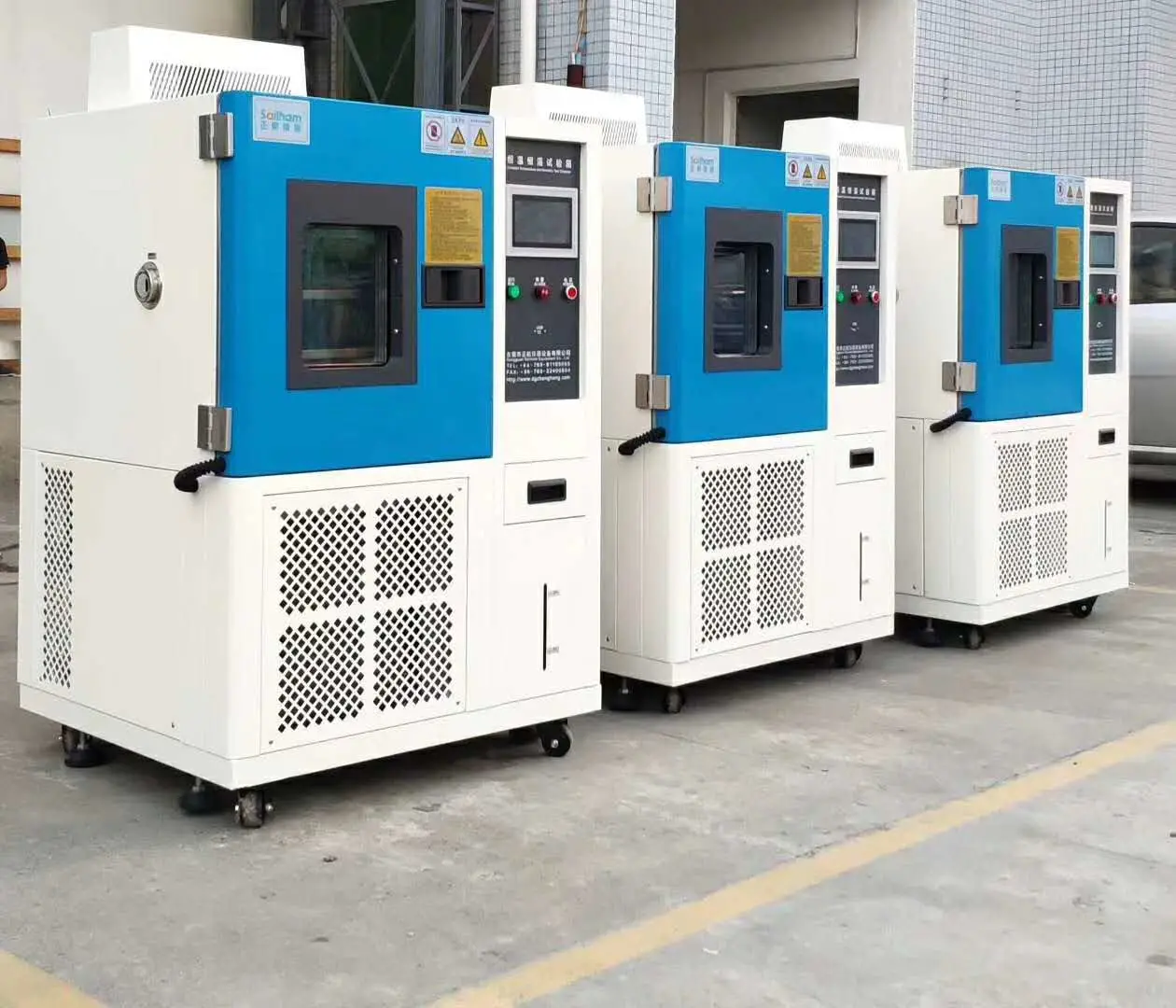

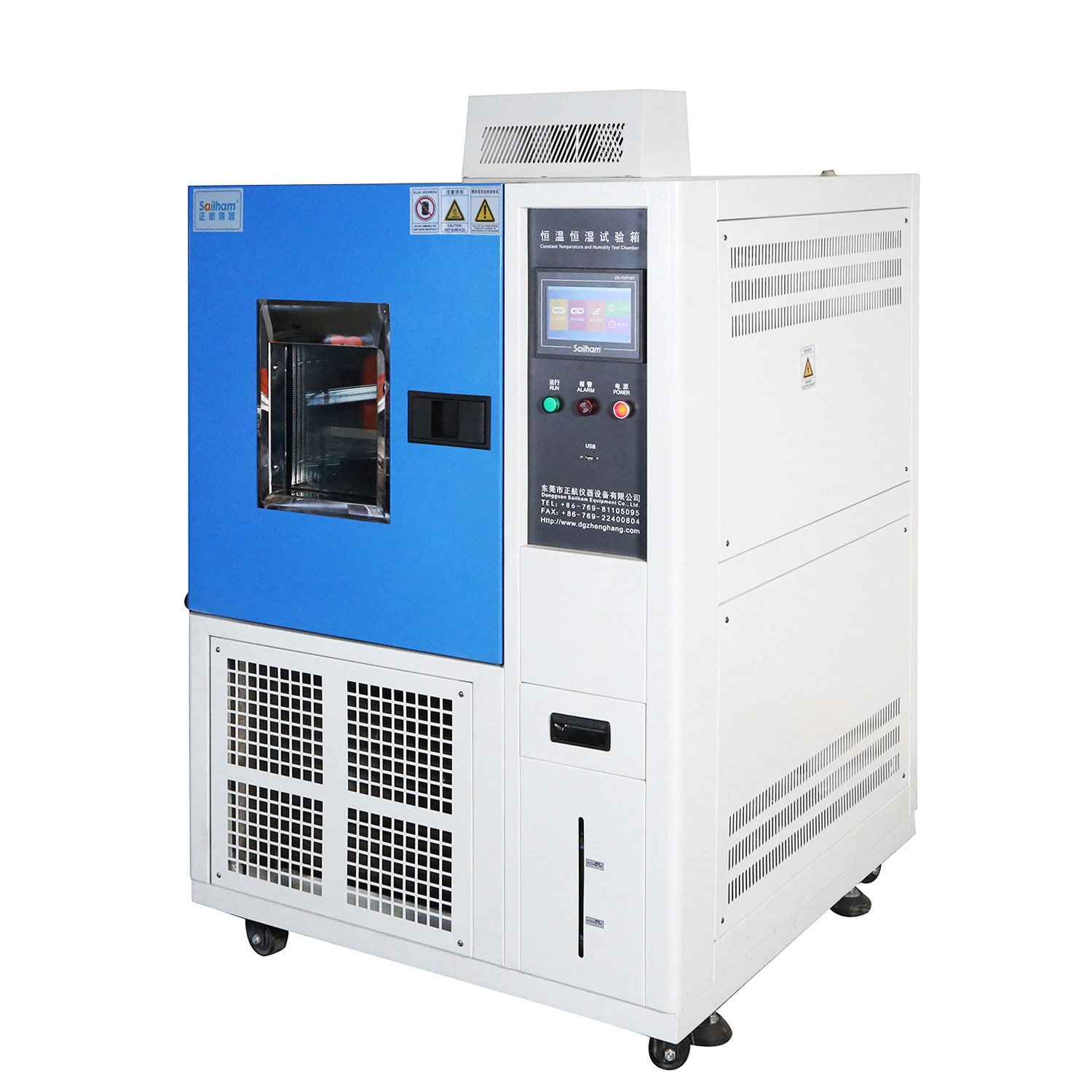

Product Image: (Blue color painted shell and 304# SUS shell optional)
Temperature and Humidity Test Chamber / Climate Test Chamber

Temperature and Humidity Test Chamber / Climate Test Chamber




Product Specifications:
ModelZH-HS-80
(A~F)
ZH-HS-150
(A~F)
ZH-HS-225
(A~F)
ZH-HS-408
(A~F)
ZH-HS-800
(A~F)
ZH-HS-1000
(A~F)
Inner size: WHD(cm)40*50*4050*60*5060*75*5060*85*80100*100*80100*100*100
External size: WHD(cm)105*165*98105*175*108115*190*108135*200*115155*215*135155*215*155
Temperature range(Low:A:+25ºC; B:0ºC;C:-20ºC; D:-40ºC;E:-60ºC;F:-70ºC) (High:+100ºC/+150ºC)
Humidity range20%~98% R.H.(10%~98%R.H);(5%~98%R.His special optional condition)
Temp analytic accuracy/
uniformity
0.1ºC/±2.0ºC
Temperature Fluctuation±0.5ºC
Humidity analytic accuracy/ Humidity  control accuracy±0.1%;±2.5%
Heating/cooling timeHeat up about 4.0°C/min ;  Cooling about 1.0°C/min
Inner and outer materialsSUS#304 Stainless steel for inner chamber ; Carton Advanced cold plate nano paint for outer
Insulation materialsResistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials
Cooling systemAir cooling/single segment compressor(-40°C) ,air and water double segment compressor
(-50°C~-70°C)
Protection devicesFuse switch, compressor overload switch, refrigerant high and low pressure protection switch,
super humidity over-temperature protection switch, fuse, failure warning system
PartsWatching window , 50mm testing hole , PL internal bulbs , Wet and dry bulb gauze , partition plate , castorx4,Foot Cupx4
CompressorOriginal France "Tecumseh" brand
ControllerTATO Taiwan
PowerAC220V 50/60Hz & 1 , AC380V 50/60Hz 3
weight (kg)150220270320450580


Our company:

Temperature and Humidity Test Chamber / Climate Test Chamber


Workshop

Temperature and Humidity Test Chamber / Climate Test Chamber



Temperature and Humidity Test Chamber / Climate Test Chamber


Temperature and Humidity Test Chamber / Climate Test Chamber






TRADE SHOW:
Temperature and Humidity Test Chamber



WALK-IN CHAMBER INSTALLATION, CUSTOMER VISIT

Temperature and Humidity Test Chamber / Climate Test Chamber


Certifications:
Temperature and Humidity Test Chamber



FAQ
Why choose us?
1. Consider different countries plugs, manually change the-voltage from 110V to 220V, as insurance indicator.

2.Excellent After sale Service:
12 months warranty. Besides, we can help you to repair your controller for free, even it's not from our factory. What can we do for you, just don't hesitant to contact us.

3.Commitment:
We will sign a letter of commitment while we sign the contract, which will improve your confidence to us.

4.Good Packaging:
Simulation Animatronic Customer Triceratops are covered with air bubble film before put them into the wooden case, which not only has good shock absorption, impact resistance, heat sealing and also has the advantages of nontoxic, odorless, moisture corrosion, good transparency etc.
