Solar panel Programmable constant Temperataure and Humidity testing chamber
Solar panel Programmable Constant Temperatuare and Humidity Testing chamber standard
It's according to IEC61215-2:2016 testing standard
Solar panel Programmable Constant Temperature and Humidity Testing chamber purose
It's to determine the ability of the module to withstand the effects of long-term penetration of humidity
Solar Panel Programmable Constant Temperatuare and Humidity Testing Chamber main technical parameter
Solar Panel Programmable Constant Temperatuare and Humidity Testing Chamber images show
Customers with us
ShangHai Exibition show
Cooperation Lists
Solar panel Programmable Constant Temperatuare and Humidity Testing chamber standard
It's according to IEC61215-2:2016 testing standard
Solar panel Programmable Constant Temperature and Humidity Testing chamber purose
It's to determine the ability of the module to withstand the effects of long-term penetration of humidity
Solar Panel Programmable Constant Temperatuare and Humidity Testing Chamber main technical parameter
| Product Name | Solar panel programmable constant temperature and humidity testing chamber |
| Testing standard | IEC 61215 -2:2016 |
| Testing temperature | 85ºC±2ºC |
| Relative humidity | 85%±5% |
| Temperature fluctuation | ≤±1ºC |
| Temperature deviation | ≤±1ºC |
| Temperature uniformity | ≤2ºC |
| Humidity range | 30~95%RH |
| Relative humidity deviation | ≤±2.5% RH (humidity 75 RH) |
| Common moisture point | 85ºC/85% RH continue time≥1000h 90ºC/90%RH continuity≥1000h |
| Control ways | Touch screen +PID intelligence control |
| Testing sample quanitity | 12 PCS |
| Inner chamber Material | Stainless steel (SUS #304 ) |
| Outer chamber Material | Steel plate baking finish |
| Thermal insulation material | hard foam and glass wool |
| Communicate interface | RS-232 or RS-485 |
| Air supply circulation system | Motor |
| Electricity | 380V 60HZ |

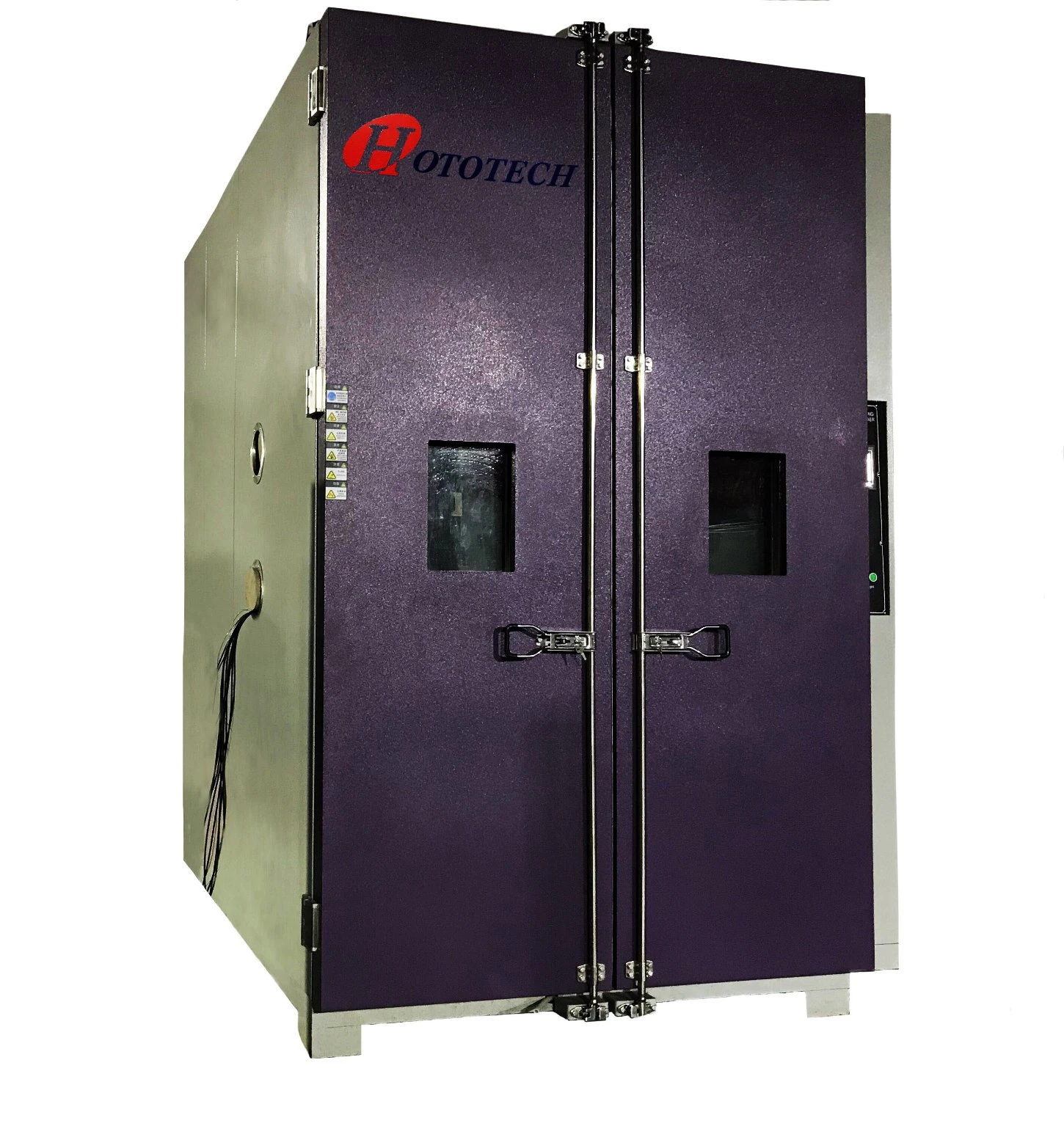

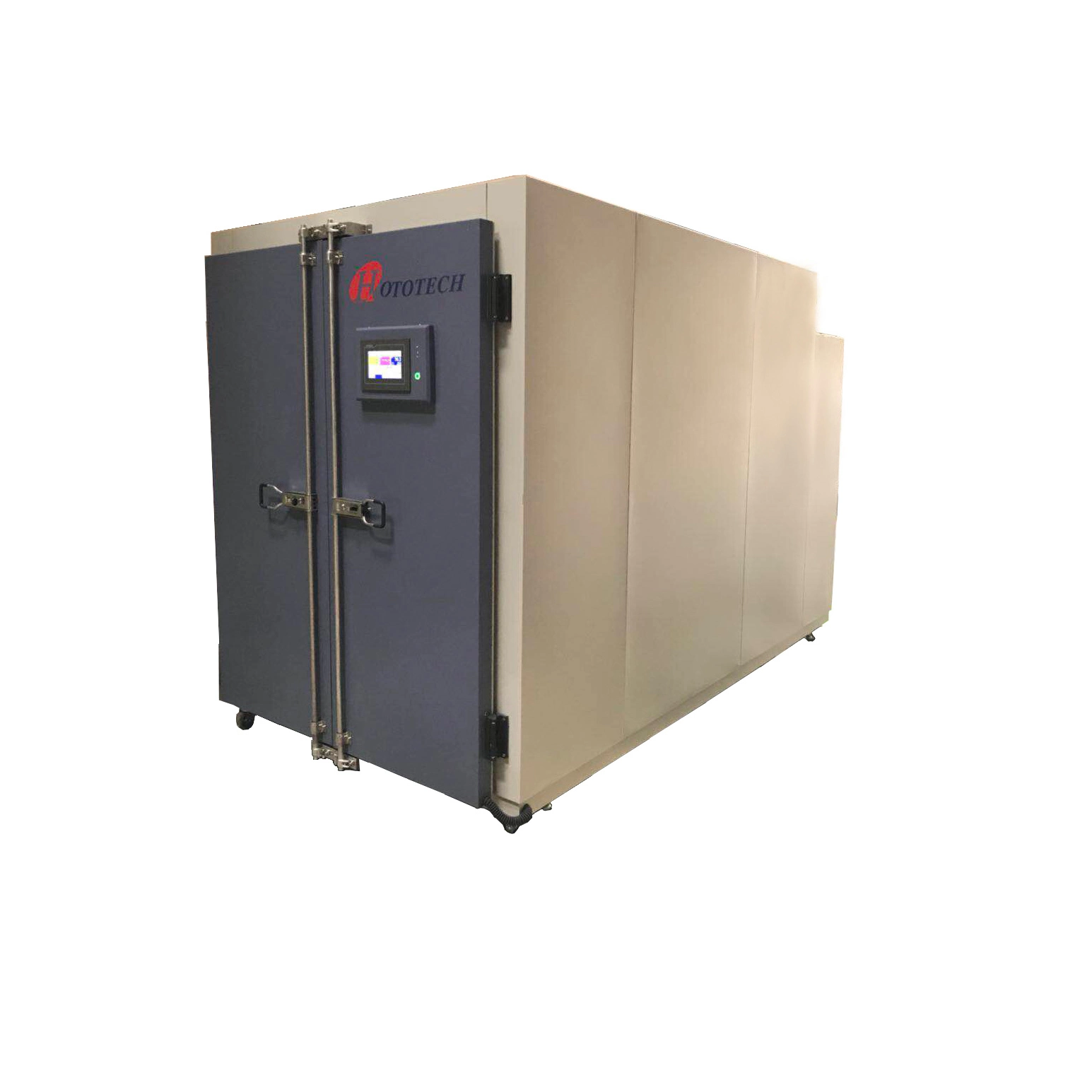

Solar Panel Programmable Constant Temperatuare and Humidity Testing Chamber images show
