Applicable range
Simulating environmental test equipment laboratory temperature humidity test machine is used to test various types of materials for their tolerances of heat, cold, dry, humidity. It is applied for quality inspection for all types of electronic products, electric appliance, and products from communication, instrument, automobile, plastic, metal, food, chemical, building materials, medical and aerospace industries.
Inner door with operation hole (optional)
50mm or100mm Entrance hole for test wire, Dia.50mm or 100mm
Sample Shelves, two layers
R232 or R485 communication Interface
Features(Simulating environmental test equipment laboratory temperature humidity test machine)
1. Graceful appearance, circularly shaped body, surface treated with mist strips, and plane handle with no reaction. Easy to operate, safe and reliable.
2. Rectangular double-glassed watching window for the observation of the test production during the testing process. The window is equipped with sweat-proof electrical heating device that can prevent water steam from condensing into droplets, and with high brightness PL fluorescent bulbs to provide light inside the box.
3. Double-layer-insulated airtight doors, able to insulate the internal temperature effectively.
4. Water supply system that is externally connectable, convenient for refilling water into the humidifying pot and automatically recyclable.
5. The French Tecumseh brand is used for the circulation system of the compressor, capable of removing the lubricant between the condensation pipes and capillaries. The environment-protecting coolant is used for the whole series (R232,R404).
6. Imported LCD display screen is used for the control unit, capable of displaying the measured value as well as the set value and time.
7. The control unit has the functions of multiples segment program editing, and of quick or slope control of temperature and humidity.
8. Inserted mobile pulley, convenient for movement an relocation, with strong positioning screws.
Specifications and technical parameters
| specifications and technical parameters | |||||
| Model | LJ(K)PTH-100 (A, C, E, G, S) | LJ(K)PTH-225 (A, C, E, G, S) | LJ(K)PTH-500 (A, C, E, G, S) | LJ(K)PTH-1000 (A, C, E, G, S) | LJ(K)PTH-1200 (A, C, E, G, S) |
| Inner size: W*H*D(cm) | 50*50*40 | 50*75*60 | 70*90*80 | 100*100*100 | 150*100*80 |
| External size: W*H*D(cm) | 70*161*116 | 70*186*136 | 90*201*156 | 120*211*176 | 170*168*185 |
| Temperature range | (A:0~+200ºC; C: -20~+200ºC; E: -40~+200ºC; G:-60~+200ºC; S:-70~+200ºC) | ||||
| Humidity range | 20%~98% RH; Dry wet bulb sensor . (10%~98%R.H);(5%~98%R. special optional condition) | ||||
| Range of Fast Temperature Change | Temperature Range: -70~+150ºC; Range of Fast Temperature Change: -45~+85ºC; Max. temperature rising / falling speed is 15ºC/min when the whole process with linear control | ||||
| Analytic Accuracy / Distribution Uniformity of Temperature and Humidity | 0.1ºC; 0.1% R.H/±2.0ºC; ±3.0% R.H. | ||||
| Control Accuracy of Temperature and Humidity | ±0.5ºC; ±2.5% R.H. | ||||
| Temperature Rising / Falling Speed Rate | The Temperature Rising/Falling Speed Rate with linear control : 3~15ºC/min, adjustable The Temperature Rising/Falling Speed Rate non-linear control : 3~30ºC/min, adjustable | ||||
| Cooling time | ≥1ºC/min | ||||
| Inner and outer materials | Mirro face SUS#304 Stainless steel for inner chamber ; Mirro face cold rolled steel with power coating. | ||||
| Insulation materials | Resistant to high temperature, high density, formate chlorine, ethyl acetum foam insulation materials | ||||
| Cooling system | Mechanical refrigerating(air cooling) | ||||
| Compressor | Original imported compressor | ||||
| Resolution ratio | temperature: 0.01ºC ; humidity: 0.1%RH; time: 1s. | ||||
| Transducer (sensor) | Temperature: armored platinum resistance PT100 German JUMO ; Humidity: Finland VAISALA 0.8-level humidity module sensor, humidity range 0%~100%RH, temperature range: -100~+200ºC | ||||
| Safety device | On the side of the chamber has decompression exhaust port, automatic safety reinforced steel plate, power off protection, overtemperature protection, the alarm function and overtemperature shutdown protection according to the upper and lower limit temperature, calendar timing function(start and stop running automatically), self-checking when power on, three levelsof password protecting of setting parameters, and automatic fire-fighting linkage heptefluoro propane fire-extinguishing system. | ||||
| Standard Parts | Watching window , sample holder(2 sets) , One wire hole , one illuminating lamp, one power line, USB interface. | ||||
| Controller | Import PLC module(OMRONI LK8600)(including environmental test embedded PLC control software V15012)+ 7 inches color touch screen (including environmental test device embedded touch screen control software V1501). | ||||
| 7, 10 , 15 inches full touch operation. | |||||
| TFT LCD screen, 1021-600 resolution ratio. | |||||
| import OMRON PID modules, 0.1% control precision. | |||||
| 100 operatiing Processes, each process requires 50 precedures. | |||||
| paperless recording function, the maximum time for recording date can amount to 1200 days. | |||||
| Electronic signature function, limiting operation password protection function. | |||||
| PID cold-end output function, control software intergrates the efficiency of machine, save 20% power. | |||||
| scalable: uniformity of the acquisition and display devices of multi-channel temperature and humidity | |||||
| Anti-electronmagnetic interferance of hardware is up to industrial grade three, the highest standard in China. | |||||
| Power | AC 380V 60/50Hz | ||||
| Customized service | Welcome to Non-standard,Specail requirements,OEM/ODM orders. | ||||
Corresponding test standards:
1.GB/T2423.1-2001 Test A: low temperature test method
2.GB/T2423.2-2001 Test A high temperature test method
3.GB/T11158-2008 technical condition of high temperature test chamber
4.GB/T10589-2008 technical condition of low temperature test chamber
5.GB/T 2423.22-2008 test Nb:temperature variation test
6.GB/T 2423.4-2008 test Db:alternating temperature humidity test
7.GB/T 2423.3-2008 Constant temperature humidity test
8.GJB150.3-2009 high temperature test
9.GJB150.4-2009 low temperature test
10.GJB150.9 humidity test
11.GJB 150.9A-2009 test standards for temperature humidity test GB/T5170.2- 2008 temperature test device.
12.GB/T5170.5-2008 temperature humidity test devices, meet the requirements of 8.1 alternating temperature humidity cyclic test in Lithium-ion power battery systems designed electromobile Part2: test specification for high-energy application.

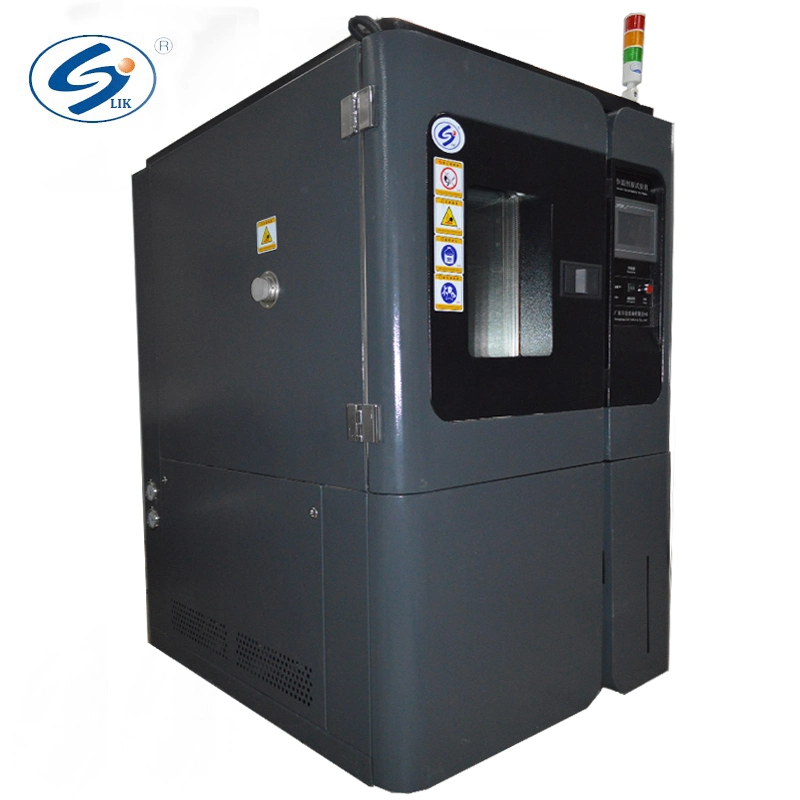

Products image(Simulating environmental test equipment laboratory temperature humidity test machine)
