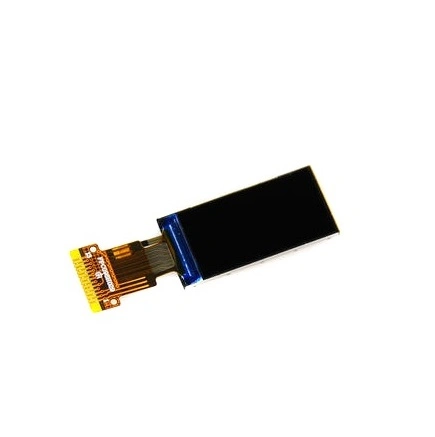

rohs/reach compliant 0.96 Inch 80*160 ips TFT LCD Display for oximeter
Outline Drawing:
Application:
Smart Home, Payment Terminals, Telecommunication Devices, Security System Equipments, Automobile
Electronics, Medical Equipments, Household Electrical appliances, Kinds of Instruments&Meters......
Factory Workshop:
Certificates:
Packing and Shipping:
About us:
EG Technology was founded and located in Shenzhen, China, which engaged in research and design,
manufacturing and sales of LCD display and touch parts, with strong R&D and QC team support.
The products EG display provided include TFT display module(0.96 inch~10.1 inch) and Monochrome
display module (character, graphic, chip on glass), with wide applications on Smart Home, Payment
Terminals, Telecommunication Devices, Security System Equipments, Automobile Electronics, Medical
Equipments, Household Electrical appliances, Kinds of Instruments&Meters......
OEM/ODM services available, we address for customer demands with first-class technologies, high quality
and sincere services in the policy of "Top Quality, Constant Innovation", we offer high quality products and
services to customers and create a bright future based upon the principle of "Mutual Benefits".
| Model No: | EG096WDA13-F01 |
| Resolution: | 80*160 |
| Outline Dimension: | 14.04*27.95*1.35mm |
| Active Area(mm): | 10.8*21.696mm |
| Interface: | SPI 3-line/4-line |
| Viewing Angle: | Free viewing angle |
| Driving IC: | 7735s |
| Display Mode: | Normally black |
| Technology Type: | a-Si TFT active matrix |
| Pixel Pitch (mm): | 0.219*0.219mm |
| Pixel Configuration: | R.G.B. Stripe |
| Surface treatment: | Anti-Glare |
| FPC type: | ZIP |
| Operating Temperature: | -20 to +70ºC |
| Storage Temperature: | -30 to +80ºC |
| Brightness: | 300Cd/m2 |
| Warranty: | 12 months |
Outline Drawing:
Application:
Smart Home, Payment Terminals, Telecommunication Devices, Security System Equipments, Automobile
Electronics, Medical Equipments, Household Electrical appliances, Kinds of Instruments&Meters......
Factory Workshop:
Certificates:
Packing and Shipping:
About us:
EG Technology was founded and located in Shenzhen, China, which engaged in research and design,
manufacturing and sales of LCD display and touch parts, with strong R&D and QC team support.
The products EG display provided include TFT display module(0.96 inch~10.1 inch) and Monochrome
display module (character, graphic, chip on glass), with wide applications on Smart Home, Payment
Terminals, Telecommunication Devices, Security System Equipments, Automobile Electronics, Medical
Equipments, Household Electrical appliances, Kinds of Instruments&Meters......
OEM/ODM services available, we address for customer demands with first-class technologies, high quality
and sincere services in the policy of "Top Quality, Constant Innovation", we offer high quality products and
services to customers and create a bright future based upon the principle of "Mutual Benefits".
