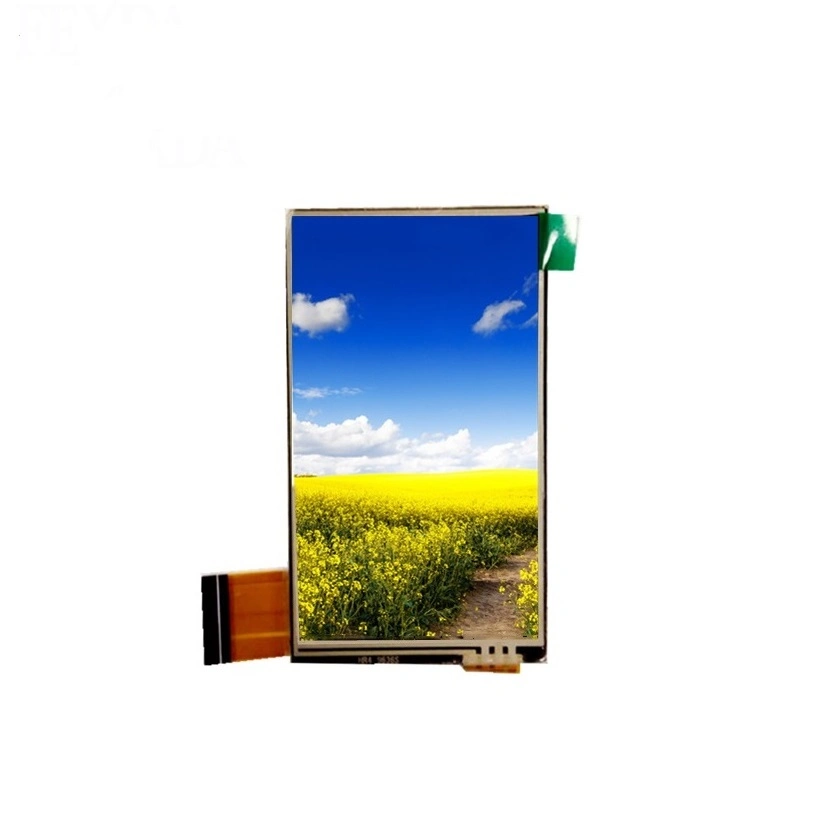

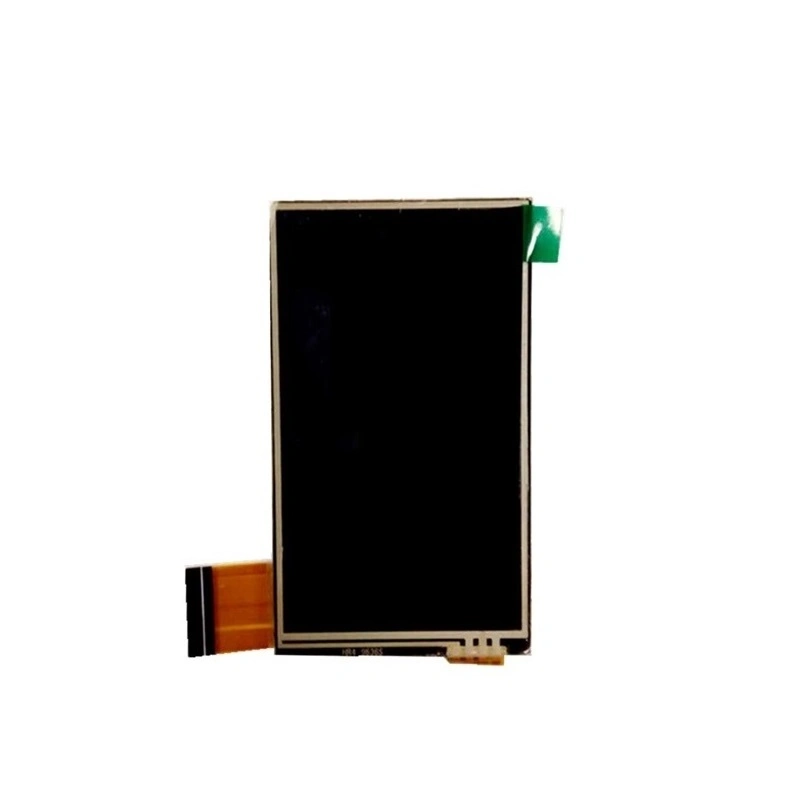

2.7 Inch 960X240 TFT Ili8961 RGB Interface RoHS Compliant TFT LCD Display

2.7 inch 960x240 tft ILI8961 RGB interface rohs compliant tft lcd display   Model No:EG027FX045-F01 Resolution:240*320 Outline Dimension:39.10*67.50*3.6mm LCD Active Area(mm):33.06* 58.8mm Interface:Series RGB 8-bit Viewing Angle:9 o\' clock Driving IC:ILI8961 Display Mode:Normal

Featured Products

2.7 inch 960x240 tft ILI8961 RGB interface rohs compliant tft lcd display

 Model No:EG027FX045-F01
 Resolution:240*320
 Outline Dimension:39.10*67.50*3.6mm
 LCD Active Area(mm):33.06* 58.8mm
 Interface:Series RGB 8-bit
 Viewing Angle:9 o' clock
 Driving IC:ILI8961
 Display Mode:Normally White,Transmissive
 Technology Type:a-Si TFT active matrix
 Surface treatment:Anti-Glare
 Pixel Pitch (mm):0.13775 x 0.18375mm
 Pixel Configuration: RGB-Delta
 FPC type:ZIP
 Operating Temperature:   -20 to +70ºC
 Storage Temperature:  -30 to +80ºC
 Brightness: 230Cd/m2
 Warranty:12 months


Mechanical Drawing:
2.7 Inch 960X240 TFT Ili8961 RGB Interface RoHS Compliant TFT LCD Display


Application:


Smart Home, Payment Terminals, Telecommunication Devices, Security System Equipments, Automobile
Electronics, Medical Equipments, Household Electrical appliances, Kinds of Instruments&Meters......


2.7 Inch 960X240 TFT Ili8961 RGB Interface RoHS Compliant TFT LCD Display

Factory Workshop:

2.7 Inch 960X240 TFT Ili8961 RGB Interface RoHS Compliant TFT LCD Display

2.7 Inch 960X240 TFT Ili8961 RGB Interface RoHS Compliant TFT LCD Display



Certificates:

2.7 Inch 960X240 TFT Ili8961 RGB Interface RoHS Compliant TFT LCD Display


Packing&Shipping:
2.7 Inch 960X240 TFT Ili8961 RGB Interface RoHS Compliant TFT LCD Display

About us:


EG Technology was founded and located in Shenzhen, China, which engaged in research and design,
manufacturing and sales of LCD display and touch parts, with strong R&D and QC team support.

The products EG display provided include TFT display module(0.96 inch~10.1 inch) and Monochrome
display module (character, graphic, chip on glass), with wide applications on Smart Home, Payment
Terminals, Telecommunication Devices, Security System Equipments, Automobile Electronics, Medical
Equipments, Household Electrical appliances, Kinds of Instruments&Meters......

OEM/ODM services available, we address for customer demands with first-class technologies, high quality
and sincere services in the policy of "Top Quality, Constant Innovation", we offer high quality products and
services to customers and create a bright future based upon the principle of "Mutual Benefits".
