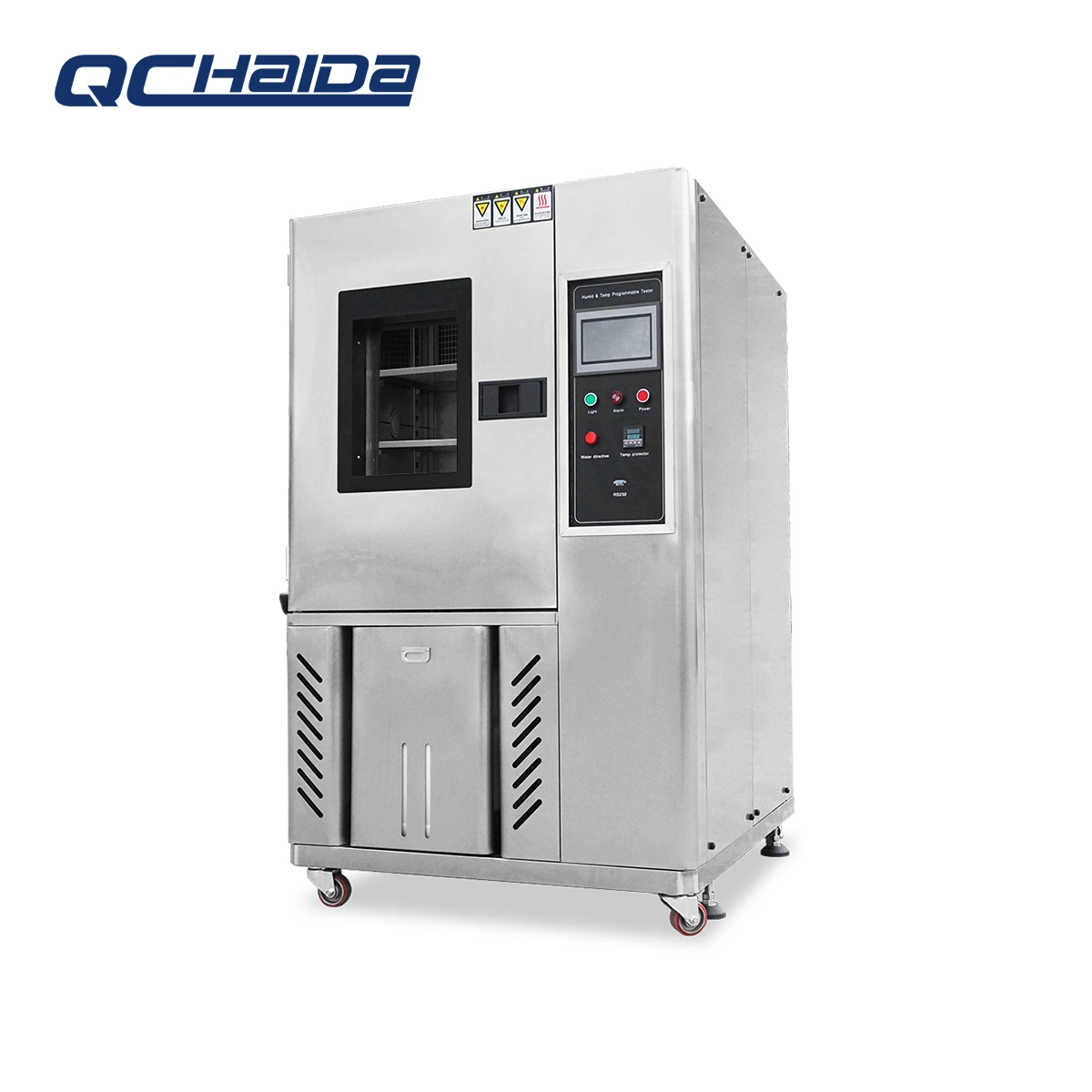

Introduction:
Temperature and humidity test chamber can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Application industry (not limited to the following):
1. electronic, electrical, mobile, data
2. communication, instrumentation, vehicle parts
3. Plastic products, metal, food
4. Chemistry, building materials, medical treatment
5. Space and other products to detect the quality of use
Advantage:
1. High test accuracy, small temperature and humidity deviation, and high temperature and humidity uniformity.
2. Precise laser cutting.
3. Stable performance and durable.
4. Good sealing performance. Fully enclosed structure, high-quality compressor (French original Taikang compressor), low-noise freezing device with multiple protection devices, safe and reliable performance. (Thermal overload relay, overload protection, over temperature protection, side pressure protection, time relay, temperature control switch)
5. With the power-on test function of the test piece (load test)
6. The arc shape of the corners to prevent bumps. Mirror stainless steel appearance, highlight the quality; Philips lighting window lights, built-in high-temperature defogging device, easy to observe the product test in the box.
7. The equipment operates with low noise, the noise is less than 60 decibels.
Standard features:(The table parameters for the company Standard Model parameters, we support customer customization parameters)
| Model | HD-E702-150B20 | HD-E702-150B40 | HD-E702-150B70 | |||
| Capacity | 150L | |||||
| Internal dimensions | 500mm*600mm*500mm(W*H*D) | |||||
| External dimensions | 1070mm*1495mm*1010mm(W*H*D) | |||||
| Temperature Range | -20ºC ~ + 150ºC | -40ºC ~ + 150ºC | -70ºC ~ + 150ºC | |||
| Humidity Range | 20ºC~98%R.H | |||||
| Temperature resolution | 0.01ºC | |||||
| Humidity resolution | 0.1%R.H | |||||
| Temperature deviation | ±0.5ºC | |||||
| Humidity deviation | ±2%R.H | |||||
| Temperature uniformity | <= 2ºC | |||||
| Humidity deviation | ±3%R.H | |||||
| Temperature fluctuation | ±0.5ºC | |||||
| Humidity fluctuation | ± 2%R.H | |||||
| Heating rate | -70ºC → + 150ºC ,Average throughout >= 3ºC / min | |||||
| Cooling rate | 150ºC → -70ºC ,Average throughout >= 1ºC / min | |||||
| Case shell material | SUS304 # stainless steel plate (thickness 1.2mm) | |||||
| Chassis inner wall material | SUS304 # stainless steel plate (thickness 1.2mm) | |||||
| Insulation material | 100mmRigid polyurethane foam+100mmHigh density glass fiber cotton | |||||
| Standard configuration | φ50 Test hole, lighting lamp, double-layer vacuum strengthened glass observation window | |||||
| Weight | 150kg (HD-E702-150B20, HD-E702-150B40) | 200kg (HD-E702-150B70) | ||||
| Electric current | 6A (HD-E702-150B20, HD-E702-150B40) | 8A (HD-E702-150B70) | ||||
| Power | 5.5kw (HD-E702-150B20, HD-E702-150B40) | 6.5kw (HD-E702-150B70) | ||||
| Power supply | single-phase,220V,50/60HZ (HD-E702-150B20, HD-E702-150B40) | single-phase,220V,50/60HZ (HD-E702-150B70) | ||||
| Filter drier | Absorbs residual moisture and acidic substances in the refrigerant of the refrigeration system, and filters out solid rest particles and copper shavings in the system to protect the normal operation of the expansion valve and capillary from ice and dirty plugging | |||||
| Humidification system | Stainless steel humidifier | |||||
| Heating system | Nickel chromium alloy stainless steel heater | |||||

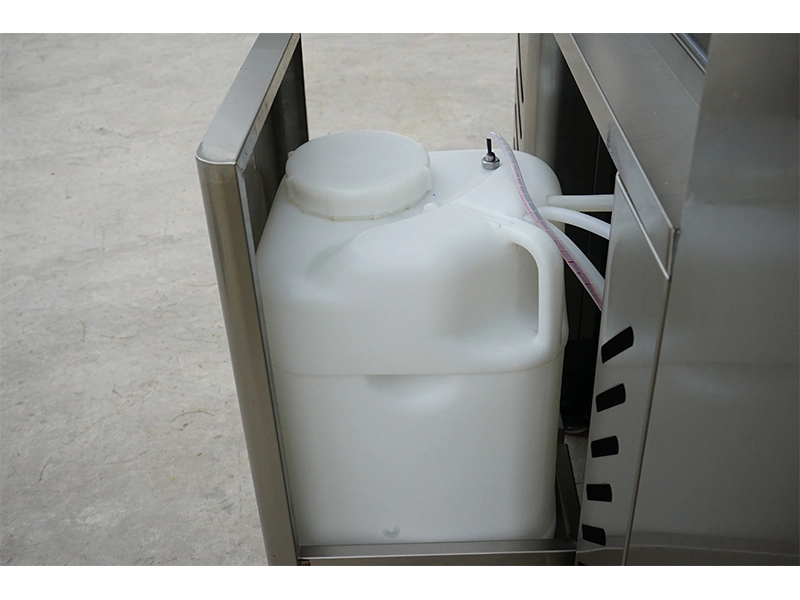

| Water supply system | Front-mounted water supply tank, automatic water supply system | |||||
| Standard | GB2423.1-2008/IEC6008-2-1-2007, GB/T 2423.2-2008, GJB150.3A-2009 GJB150.4A-2009, GB2423.22-2008, GBT 2424.5-2006, GB/T 10589-2008 GB/T2423.3-2008(IEC68-2-3) | |||||
| Refrigerating system | |||
| compressor | Imported French Taikang fully enclosed compressor | ||
| Refrigerant | Environmental protection refrigerant R404A/R23 | ||
| Cooling method | Single-stage cooling (HD-E702-150B20, HD-E702-150B40) | Mechanical binary refrigeration (HD-E702-150B70) | |
| Blower | Centrifugal fan with forced circulation | ||
| Evaporator / Condensate | Finned tube heat exchanger | ||
| Condensation method | Air-cooled | ||
| Condenser | Air-cooled scale condenser, cooling fan cooling (HD-E702-150B20, HD-E702-150B40) | Stainless steel brazed plate heat exchanger (HD-E702-150B70) | |
Chamber design features:
- High performance and quiet operation (68 dBA)
- Space-saving designed for flush installation to wall
- Full thermal break around doorframe
- One 50mm diameter cable port o left, with flexible silicone plug
- Direct water supply connection for continuous operation
- Accurate wet/dry-bulb humidity measurement system for easy mantain
