Digital Load Indicator Wtl a 700 Crane Computer Indicator System for Lattice Crawler Crane
Product Description

What's the load  moment indicator  system ?

Load Moment Indicator(safe load indicator or Crane computer) is a device which is installed on various sorts of cranes like mobile, crawler, tower, gantry, portal, marine and offshore crane. It alert the operator if the lift is exceeding the safe operating range. In some cases, the device will physically lock out the machinery in circumstances it determines to be unsafe.

It controls the lifting equipment to function as per the manufacturer's suggested safe load charts. Each of the measured parameters like load weight, working radius, control limit,angle and extension of the crane boom, etc will then further be displayed in the operator's cabin.


Detailed Images

Digital Load Indicator Wtl a 700 Crane Computer Indicator System for Lattice Crawler Crane
Digital Load Indicator Wtl a 700 Crane Computer Indicator System for Lattice Crawler CraneDigital Load Indicator Wtl a 700 Crane Computer Indicator System for Lattice Crawler Crane

Data Logger Can Be Customized
The data logger system records the moment system parameters and the alarm data of moment
system for crane in using status.The data logger protects the parameters and system data.If there are security incidents, these parameters provide the parameters and data for the crane operation; Equipment maintenance personnel can also use data to analysis system performance and make reference for equipment maintenance.


Data Record Capacity

1 record per second, 1 hour is 3600 records, 24 hours a day continuous record, then the day
is3600 * 24 = 86400 records. Each record 180 bytes (the longest), then total of 15.6M per day data, about
16M. If Encrypted data, 4G memory, can only be calculated by 2G, that is 1870M. 1870/16 = 116.5
days ,4G memory can record about 4 months.

1 record per 2 seconds, 1 hour is 1800 records, 24 hours a day continuous record, then the day is
1800 * 24 = 43200 records. Each record 180 bytes (the longest), then total of 7.8 M per day data, about 8 M. If Encrypted data, 4G memory, can only be calculated by 2G, that is 1870M. 1870/8 =233 days .4G memory can record about 8 months.

Digital Load Indicator Wtl a 700 Crane Computer Indicator System for Lattice Crawler Crane
Digital Load Indicator Wtl a 700 Crane Computer Indicator System for Lattice Crawler Crane



Technical Parameters
Model: WTL-A700Control Output: <= 6 Channels
Display:8 inch LCDSystem Composition Error: ±5%(F.S.)
Working Temperature: -20ºC~70ºCPower Comsumption:<30W
Operating Humidity: 95%RH(25ºC)Alarm Volume: >60db
Weight Measurement Range: 0T~999.9TIP Grade: IP 65
Resolving Ability: 0.1TPower Supply: AC220V/DC24V
Singal Input: <= 6 ChannelsApplication:linkbelt&liebherr&terex&hihtachi

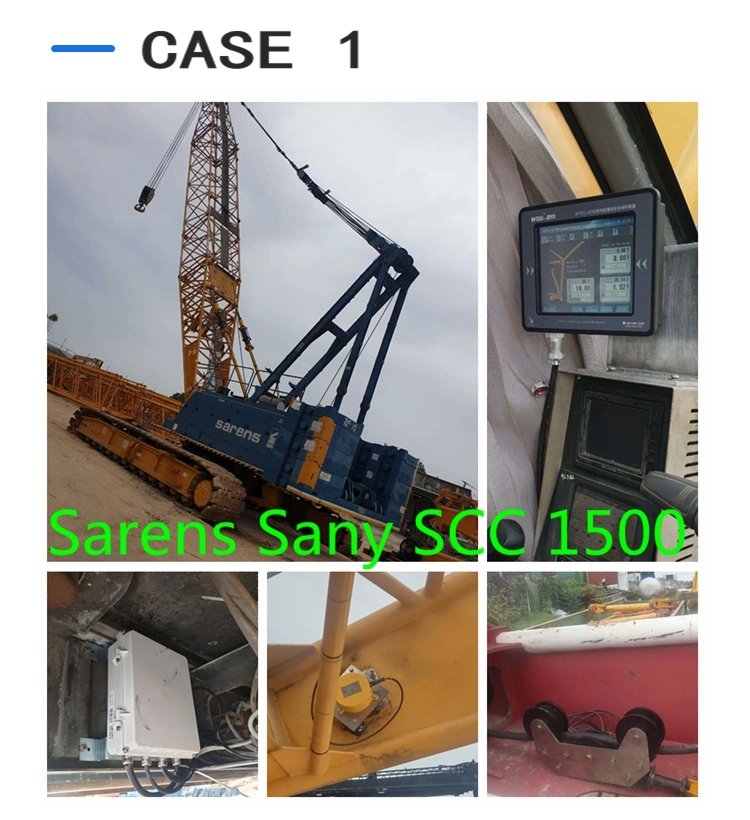

Application Case
Digital Load Indicator Wtl a 700 Crane Computer Indicator System for Lattice Crawler CraneDigital Load Indicator Wtl a 700 Crane Computer Indicator System for Lattice Crawler CraneCertifications

Digital Load Indicator Wtl a 700 Crane Computer Indicator System for Lattice Crawler Crane
Company Information
Digital Load Indicator Wtl a 700 Crane Computer Indicator System for Lattice Crawler Crane
Weite Technologies Co.,Ltd


Founded in 2002, it is national hi-tech enterprise located in Yichang, China. It has been focusing on R&D and OEM manufacturing of lifting safety protection devices such as Load Moment Indicator, Safe monitoring systems, overload limiter, Load cell, Anemometers etc.We continuously concentrate on ensuring lifting equipments run safely as long-term pursuing goal.

"The trusted Safety Partner for Global Top 100 Crane Owning Companies like Tat Hong, Asiagroup, Big Crane and Fortune 500 corps" . Nowadays, WTAU products are widely used in marine industry,electrical, chemical, steel, metallurgy, construction, ports and other industries, and have been wide spreaded to over 30 countries and regions.


FAQ
1) Is your company well-reputated? How to prove that?
It is a China Top 3 brand focusing on Crane Safety Protection Equipment. We are also Safety Partners for Global Top 100 Crane Owning Companies like Tat Hong(top 9), Asiagroup(top 45), Big Crane(top 94) and Top 500 companies such as ABB, Macgragor,TTS,CNOOC,etc. Products are been sold to over 30 countries and regions globally.

2) How to assure the quality?
The Product Warranty for the total item is 12 months. Any problem after installation, we will change the new one for free.

3) How to install the LMI?
English User Manual(include all the details of each item) will be offered for installation and trouble shooting(refer to the pic below). Also free Remote Instant Technical assistance would be offered by our english engineers. Or we can send our engineers to assist you locally.

4) How much is your LMI system?
Send me the crane model, hook number, working conditions(Luffing Tower Working Condition, Pilling) and special requirement and the like. Your contact info is a must.

5) How can I place order?
A: You can contact us by email about your order details, or place order on line.

6) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T and Paypal, Western Union are the most usual ways we are using.
