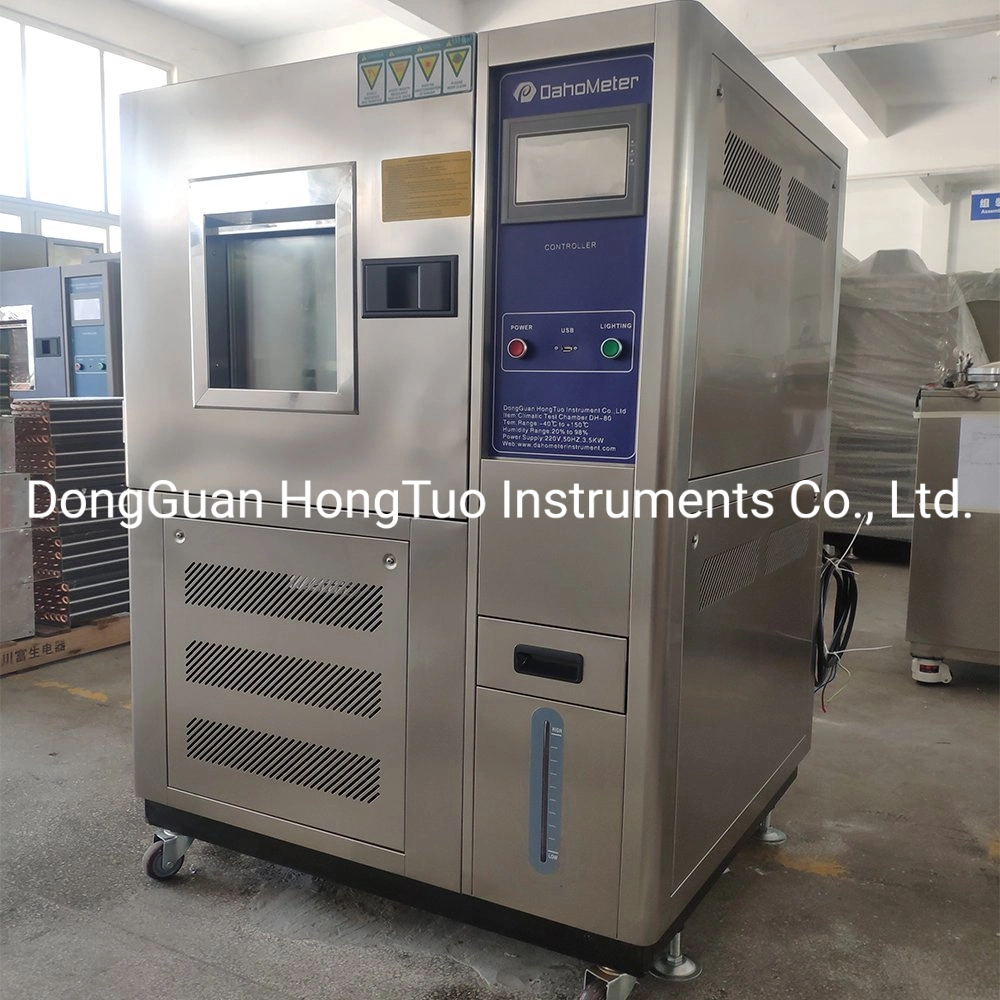

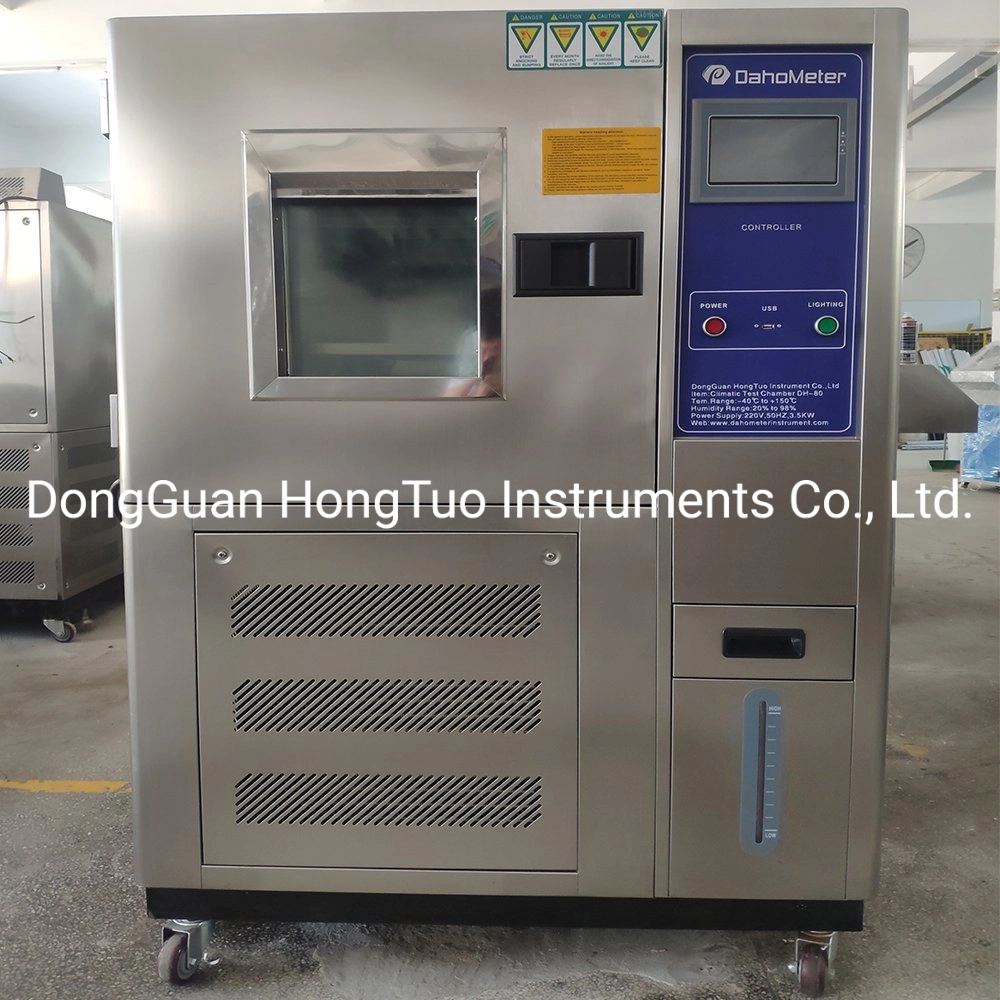

DH-80 Temperature And Humidity Environmental Testing Chamber With Best Quality
Usage
This equipment can keep the temperature and humidity setup by users.Its' value can be alternative changed through the software.The device is application to test and confirm the property of heat-resisting,cold-resisting,drying-resisting,humidity-resisting.,etc.It is widely used in the field of electron,electric equipment,communication,instrument,car,plastic,metal,food,chemical,building materials,medical,spaceflight.,etc.
Features
(1) The outer case is made up of SECC steel plate with spraying plastic.CNC processing molding,Beautiful design,Reactionless holder,easy operation
(2) Large LCD touching screen
(3) Adopt micro-computer temperature humidity controller.accuracy and reliability
(4) Large watching window;floodlight,of which can keep inside of chamber light;3 layers of vacuum glasses;can observe the status at any time
(5) Individual temperature limitation alarm system;automatically cut off when exceed temperature limitation;which can assure the safe testing
(6) Equipped with the testing hole with the diameter of 50mm at the both side of testing chamber.can be connected with outter power cable or signal cable
(7) Adopt high quality fixed PU running wheel in the bottle of machine
(8) New program temperature humidity chamber can save power more than 45% compared than the traditional type.can save responding time be around 50%.can deduct water consumption be around 80%
Specification
| Model | DH-RTS-50 | DH-RTS-80 | DH-RTS-100 | DH-RTS-150 | DH-RTS-200 | DH-RTS-300 | DH-RTS-480 | |
| Control system | Balanced temperature control system | |||||||
| Temp.Range | High temperature chamber | +60ºC~+200ºC | ||||||
| Preheating time | +60ºC~+200ºC About 20 minutes | |||||||
| Low temperature chamber | A:-55ºC~10ºC;B:-70ºC~10ºC;C:-80ºC~10ºC | |||||||
| Precooling time | A:+20ºC~-55ºC About 60 minutes | |||||||
| B:+20ºC~-75ºC About 75 minutes | ||||||||
| C:+20ºC~-80ºC About 90 minutes | ||||||||
| Testing chamber | A:-40ºC~150ºC;B:-55ºC~150ºC;C:-65ºC~150ºC | |||||||
| Recovery time | High temperature exposure for 30 minutes | |||||||
| Low temperature exposure for 30 minutes | ||||||||
| Within 5 minutes | ||||||||
| Transferring time | Within 10 seconds | |||||||
| Temp.fluctuation | ±1.0ºC | |||||||
| Temp.deviation | ≤±2.0ºC | |||||||
| Internal dimension(CM) | W | 40 | 50 | 55 | 68 | 68 | 80 | 80 |
| H | 40 | 40 | 45 | 45 | 50 | 50 | 55 | |
| D | 32 | 40 | 40 | 50 | 60 | 75 | 93 | |
| External dimension(CM) | W | 140 | 150 | 155 | 168 | 168 | 180 | 180 |
| H | 185 | 185 | 195 | 195 | 200 | 200 | 205 | |
| D | 126 | 140 | 140 | 165 | 180 | 195 | 225 | |
| Testing weight(KG) | 3.5 | 5 | 5 | 5 | 10 | 12 | 15 | |
| Interior material | SUS#304 stainless steel plate | |||||||
| Exterior material | Electrostatic sprayed surface treatment steel plate or stainless steel(SUS304) | |||||||
| Insulation material | High density polyurethane foam and glass fiber | |||||||
| Refrigeration system | eclipsed type,hermetic type/semienclosed compressor,environmental protection refrigerant(R404a/R23) | |||||||
| Controller | LCD color touch screen,English displaying,Program,Communicating function | |||||||
| Protective device | No-fuse switch,compressor overpressure,overheating,overcurrent protection,overtemperature protection,fan overload protection,fuse,dry heating machine protection,fault warning system | |||||||
| Standard accessories | one pcs of hole(φ5cm).two sets of testing racks,four pcs of moving wheels,two meters of power cord,communication interface | |||||||
| Power | AC380±10% 50HZ 3 phase wires + ground wires | |||||||
