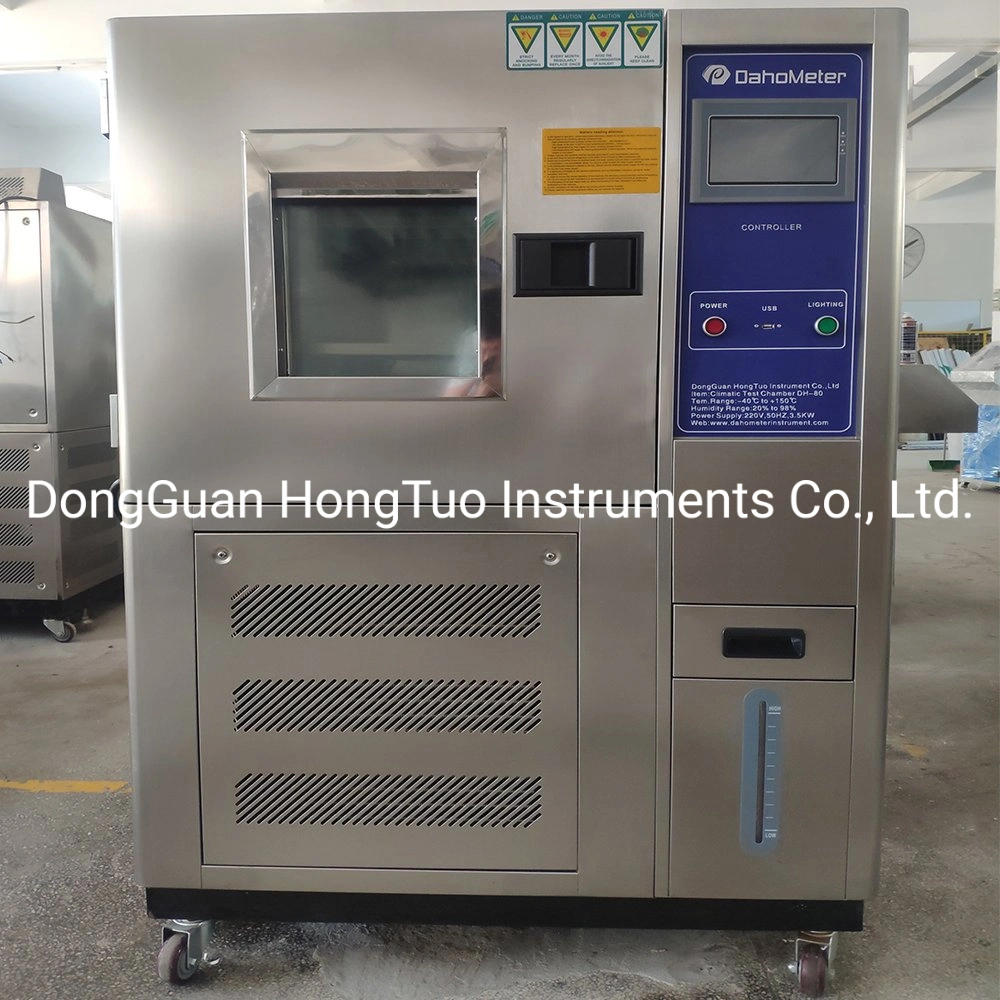

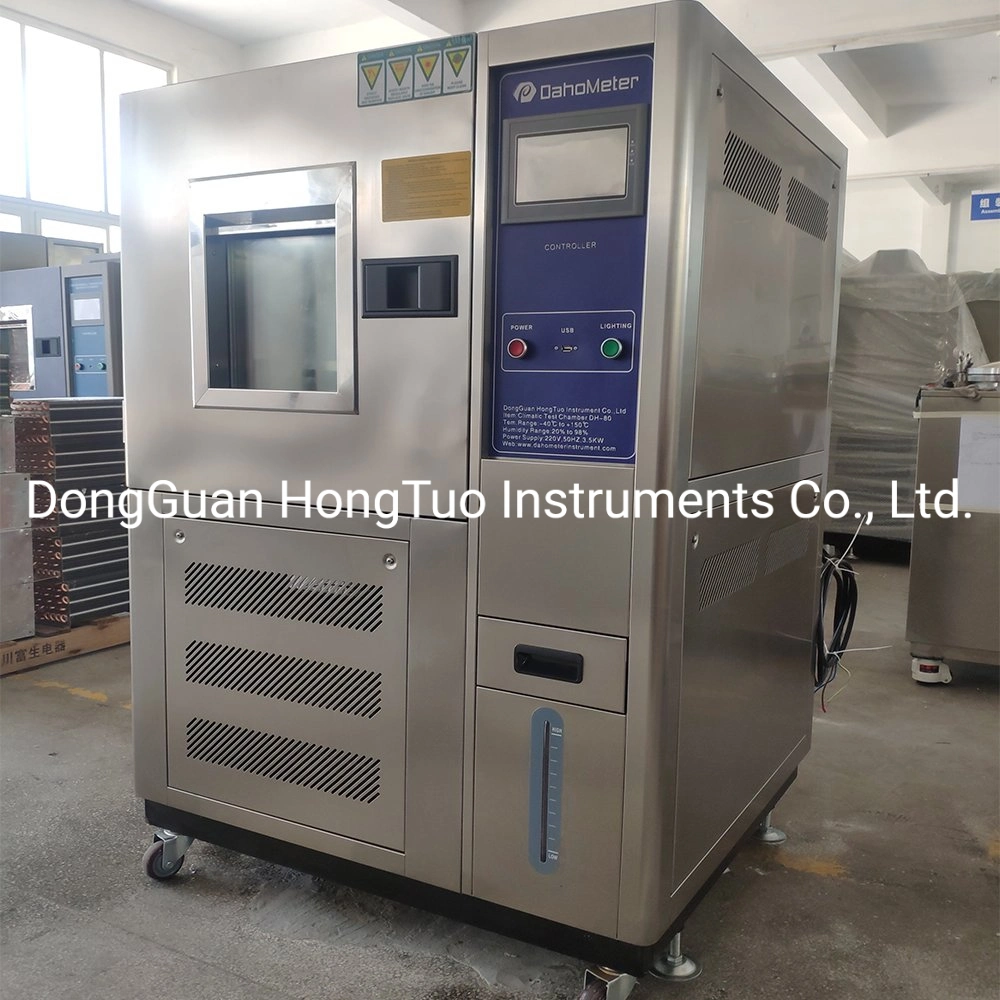

DH-23 High Quality Laboratory Temperature Humidity Testing Chamber, Climate Chamber



Product Description


This equipment can keep the temperature and humidity setup by users.Its' value can be alternative changed through the software.The device is application to test and confirm the property of

heat-resisting,cold-resisting,drying-resisting,humidity-resisting.,etc.It is widely used in the field of electron,electric equipment,communication,instrument,car,plastic,metal,food,chemical,building materials,medical,spaceflight.,etc.


Product Features


(1)The outer case is made up of SUS304 steel plate.CNC processing molding,Beautiful design,Reacionless holder,easy operation
(2)Large LCD touching screen
(3)Adopt micro-computer temperature humidity controller.accuracy and reliability
(4)Large watching window;floodlight,of which can keep inside of chamber light;3 layers of vacuum glasses;can observe the status at any time
(5)Individual temperature limitation alarm system;automatically cut off when exceed temperature limitation;which can assure the safe testing
(6)Equipped with the testing hole with the diameter of 50mm at the both side of testing chamber.can be connected with outer power cable or signal cable
(7)Adopt high quality fixed PU running wheel in the bottle of machine
(8)New program temperature humidity chamber can save power more than 45% compared than the traditional type.can save responding time be around 50%.can deduct water consumption be around 80%



Main Technical Parameters



ModelDH-80DH-150DH-225DH-408DH-800DH-1000
Interior dimensions
(WxHxD)cm
40X50X4050X60X5050X75X6060X85X80100X100X80100X100X100
Exterior dimenstions
(WxHxD)cm
97X136X97107X146X107107X161X117117X171X127155X185X130155X185X147
Internal volume(L)801502254088001000
Temp.humid range0°C/-20°C/-40°C/-60°C/-70°C~+100°C(+150°C);20%RH-98%RH
PerformanceConstancy±0.2°C;±2.5%RH
Uniformity±2°C;±3.0%RH
Heating up time100°C150°C100°C150°C100°C150°C100°C150°C100°C150°C100°C150°C
25min35min30min40min30min40min30min40min35min45min35min45min
Pull up time0-20-40-700-20-40-700-20-40-700-20-40-700-20-40-700-20-40-70
304565100304565100304565100304565100304565100304565100
Power(k.w)4.555.56.555.567.55.566.58.566.579.56.577.510.577.5811.5
Weight(kg)200250300400600700
MaterialInterior materialStainless steel plate(sus304)
Exterior materialStainless steel plate(sus304)
Insulation materialRigid polyauethane foam and glass wool
SystemThe wind circulationCentrifugal fan + wide-band forced air circulation (up output and bottom input)
Refrigerating modeAir-cooled, single-stage or cascade refrigeration, compressor(using France Taikang fully enclosed compressor or Germany Bitzer semi-hermetic compressor)
RefrigeratorR404A  R23 U.S.A HONEYWELL
HeaterIron-chrome wire heater
HumidifierStainless steel sheathed heater
Water supply methodWater pump out system
AccessoriesCable hole lid (50),2pcs/shelves plate,5pcs/Sand cloth,1pcs/lamp,
1set/product description
Safety deviceNo-fuse breaker,fuse,over-temperature protection,anti-dry protection,water shortage protection,liquid level protection,compressor overpressure,overheating,overcurrent protection,emergency stop and other protective devices
Power1/3W AC220V±10%    50/60Hz     3/5W AC380/415V±10%  50/60HZ
