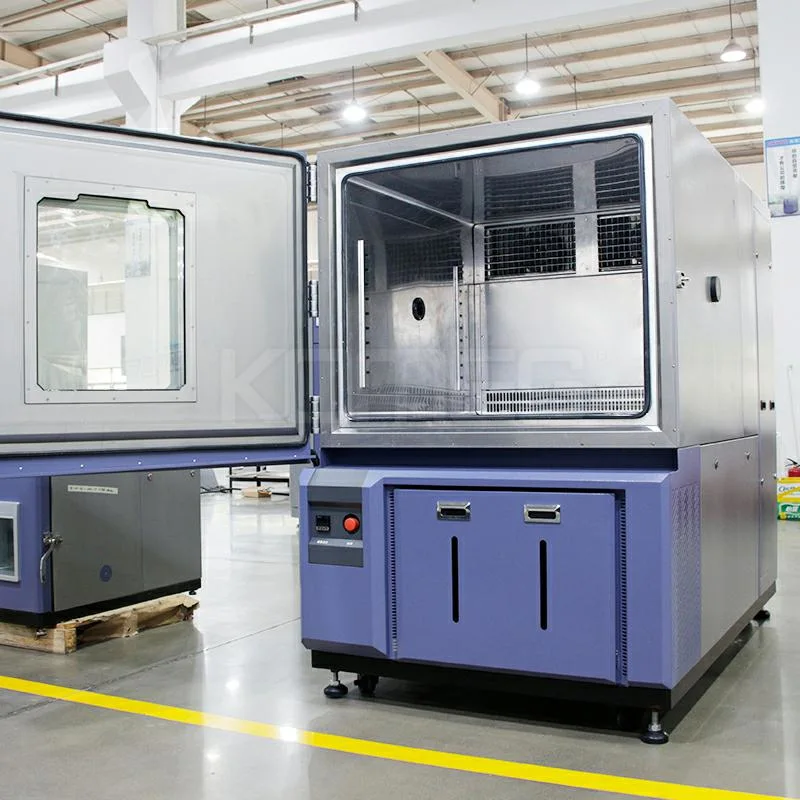

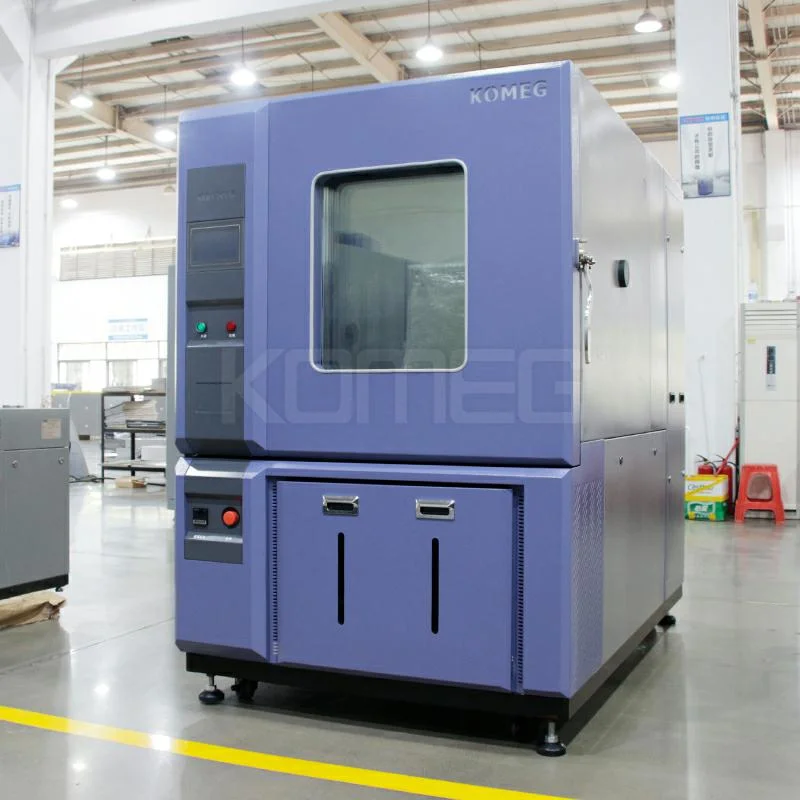

1000L Large Volume Programmable Temperature Humidity Testing Chamber
1, France Imported compressor, use HFC-404 environmental protection refrigerants, low noise, high efficiency, long service lifetime
2, Imported touch screen controller, large process control, a precise and reliable control, with interface
3, Data record, online data acquisition, imported recorder with paper, two data recording mode selection
Benefits more than you can get from other supplier.
1)Delicate touch and excellent user experience
2)Unique and compact design, top grade appearance, stable performance and easy operation.
3)Can simulate a wide range of temperature and humidity environments
4)Capable of testing large components, assemblies, and finished products
5)Customized sizes and configurations available
6)1 year warranties
Description:
Workspace volume: (W)1000 x (H)1000 x (D)1000mm
Exterior size: (W)1280 x (H)2160 x (D)1950mm
Temperature range: -40~-150° C
Temperature constancy: ± 0.5° C
Temperature uniformity: ± 2.0° C
Temperature change rate: -40~+100° C within 45 minimum (with empty load), +20~-40° C within 60min (with empty load)
Humidity range: 20 - 98% RH
Humidity uniformity: ± 3.0% RH
Humidity constancy: ± 2.5% RH
Insulation:
Exterior, baked painting steel or stainless steel (SUS304)
Interior, mist finishing stainless steel (SUS304)
Insulation material, rigid polyurethane foam and glass fiber
Door: Heating wire was installed to prevent condensation in case of low-temperature
Inspection window (W X H): 2 sets 2, 470 X 570mm inspection window, made of multi-layer coated hollow electric glass, effectively insulation and prevents condensation
Light device: 11W/220V AC X 1 installed on the inspection window
Water outlet: Water outlet available for condenser
Water replenishment: Water pump
Features:
Standard configurations:
Sight window X 1
Cable port (port Ø 50mm) X 1
Shelves X 2
Chamber lamp X 1
Power cable X 2m
No fuse breaker, over-pressure, over-heat and over-current for compressor, over-temperature, overloading of blower, dry heat-protection
Optional accessories:
Cable port: Ø 100mm is available
Shelves
RO-type water purifier: R-80/day
Provided to keep the humidifying heater and wet bulb wick free from scale
Inner glass door with operating port: A glass door can be provided behind the main door so that specimens can be observed
Two operating ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door
Dehumidifier: The rotation regenerating dehumidifier M-120 ensures precise control of low-humidity (5° C 5% RH) for electronics
Besides this chamber, we also supply Walk-in Constant Temperature and Humidity Chamber, Solar panel test chamber, 3-zone thermal shock chamber, 2- zone thermal shock chamber, Rapid Temperature Change Chamber, High and Low Temperature Altitude Test Chamber, Temperature/ Humidity /Vibration three integrated Chamber, . Precising Drying Test Chamber, Vacuum oven / No oxidation Oven, Air Exchange Type Aging Oven, Burn-in Room, Salt spray Chamber, Two wings Drop tester, Vibration Testing Machine
The technical parameter is as the following:
1, France Imported compressor, use HFC-404 environmental protection refrigerants, low noise, high efficiency, long service lifetime
2, Imported touch screen controller, large process control, a precise and reliable control, with interface
3, Data record, online data acquisition, imported recorder with paper, two data recording mode selection
Benefits more than you can get from other supplier.
1)Delicate touch and excellent user experience
2)Unique and compact design, top grade appearance, stable performance and easy operation.
3)Can simulate a wide range of temperature and humidity environments
4)Capable of testing large components, assemblies, and finished products
5)Customized sizes and configurations available
6)1 year warranties
Description:
Workspace volume: (W)1000 x (H)1000 x (D)1000mm
Exterior size: (W)1280 x (H)2160 x (D)1950mm
Temperature range: -40~-150° C
Temperature constancy: ± 0.5° C
Temperature uniformity: ± 2.0° C
Temperature change rate: -40~+100° C within 45 minimum (with empty load), +20~-40° C within 60min (with empty load)
Humidity range: 20 - 98% RH
Humidity uniformity: ± 3.0% RH
Humidity constancy: ± 2.5% RH
Insulation:
Exterior, baked painting steel or stainless steel (SUS304)
Interior, mist finishing stainless steel (SUS304)
Insulation material, rigid polyurethane foam and glass fiber
Door: Heating wire was installed to prevent condensation in case of low-temperature
Inspection window (W X H): 2 sets 2, 470 X 570mm inspection window, made of multi-layer coated hollow electric glass, effectively insulation and prevents condensation
Light device: 11W/220V AC X 1 installed on the inspection window
Water outlet: Water outlet available for condenser
Water replenishment: Water pump
Features:
Standard configurations:
Sight window X 1
Cable port (port Ø 50mm) X 1
Shelves X 2
Chamber lamp X 1
Power cable X 2m
No fuse breaker, over-pressure, over-heat and over-current for compressor, over-temperature, overloading of blower, dry heat-protection
Optional accessories:
Cable port: Ø 100mm is available
Shelves
RO-type water purifier: R-80/day
Provided to keep the humidifying heater and wet bulb wick free from scale
Inner glass door with operating port: A glass door can be provided behind the main door so that specimens can be observed
Two operating ports of 130mm diameter are used for handing specimens inside the chamber without opening the glass door
Dehumidifier: The rotation regenerating dehumidifier M-120 ensures precise control of low-humidity (5° C 5% RH) for electronics
Besides this chamber, we also supply Walk-in Constant Temperature and Humidity Chamber, Solar panel test chamber, 3-zone thermal shock chamber, 2- zone thermal shock chamber, Rapid Temperature Change Chamber, High and Low Temperature Altitude Test Chamber, Temperature/ Humidity /Vibration three integrated Chamber, . Precising Drying Test Chamber, Vacuum oven / No oxidation Oven, Air Exchange Type Aging Oven, Burn-in Room, Salt spray Chamber, Two wings Drop tester, Vibration Testing Machine
The technical parameter is as the following:
| Model | KMH-1000L | ||||
| 1000L chamber volume | |||||
| Temp. range | -40°C ~150°C | ||||
| Display resolution | 0.1°C | ||||
| Temperature stability | High±0.5°C ,low ±1.0°C | ||||
| Temperature uniformity | ±2.0°C | ||||
| Heat up time | -40°C ~+100°C,within 45 min | ||||
| Pull down time | +20°C ~-40°C,within 60 min | ||||
| Humidity range | 20~98%R.H,(standard), '10~98%R.H,(with humidifier) | ||||
| Humidity constancy | ±2.5%R.H | ||||
| Humidity uniformity | ±3.0%R.H | ||||
| Interior Dimension(mm) | 1000W*1000H*1000D | ||||
| Exterior Dimension(mm) | 1280W*2160H*1950D | ||||
| Interior material | Stainless Steel Plate(SUS 304) | ||||
| Exterior material | Baked Painting Steel Or Stainless steel(SUS304) | ||||
| Insulation material | Rigid polyurethane Foam and Glass Fiber Wool | ||||
| Total power | 16KW(heater 6KW included) | ||||
| Max current | 35.3A | ||||
| Water Consumption | 2.5L/hr | ||||
| Ambient Temp. | +5°C ~+35°C | ||||
| Power Supply | AC 380V±10%50Hz ,3 phase 4 wires +Ground Wires | ||||
| Weight | 600KG | ||||
| Sight window size | 460*560mm | ||||
| Sample holder | 2 pcs | ||||
| Fittings | cable port(portΦ50mm)*1, chamber lamp*1, power cable *2m | ||||
| Safety device (standard) | No fuse breaker,over pressure,over heat&over current protect,over temp. protect, over load protect for blower, dry heat protect | ||||
| Control System | Balanced Temperature & Humidity Control (BTHC)System | ||||
| Refrigeration system | Air Cooled (Water Cooled is option) | ||||
| Hermetic compressor | |||||
| Hermetic compressor Single stage refrigeration system, CFC-Free refrigerant(HFC-507/HFC-23) | |||||
| CFC-Free refrigerant(HFC-507/HFC-23) | |||||
| Controller | 7-inch LCD Touch Screen panel | ||||
| Operation model :Program or fix point running | |||||
| Memory capacity :120programs,1200steps, | |||||
| All repeat 999 cycles, part repeat 99 cycles | |||||
| Note: 1. We reserve the right to change specifications without prior notice 2. Customized sizes and configurations available | |||||
